    首頁 > > ALPHA-Xtra-Guard® Continuous Flex Control 高柔性、連續灣曲控制電缆

    ALPHA 85204CY Xtra-Guard® Continuous Flex Cable C-Track or High Flexing Up to 14 Million Flex Life Cycles 600 V Shielded,(Awg12, 10, 8 to 2)Multiconductor UL2587超柔軟高性能銅網隔離控制电缆
    看原圖
    		ALPHA-85104CY

    商品編號: ALPHA-85104CY

    ALPHA85304CY Xtra-Guard® Continuous Flex Cable C-Track or High Flexing Up to 14 Million Flex Life Cycles 600 V Shielded,(Awg12, 10, 8 to 2)Multiconductor UL2587耐油超柔軟雙PVC被覆可耐    1400 萬次撓曲循環運動高性能銅網隔離控制电缆
    Awg12: Alpha85204CY, Alpha85207CY, Awg10: Alpha85104CY, Alpha85107CY, Alpha85904CY, Alpha85704CY, Alpha85504CY, Alpha85304CY,

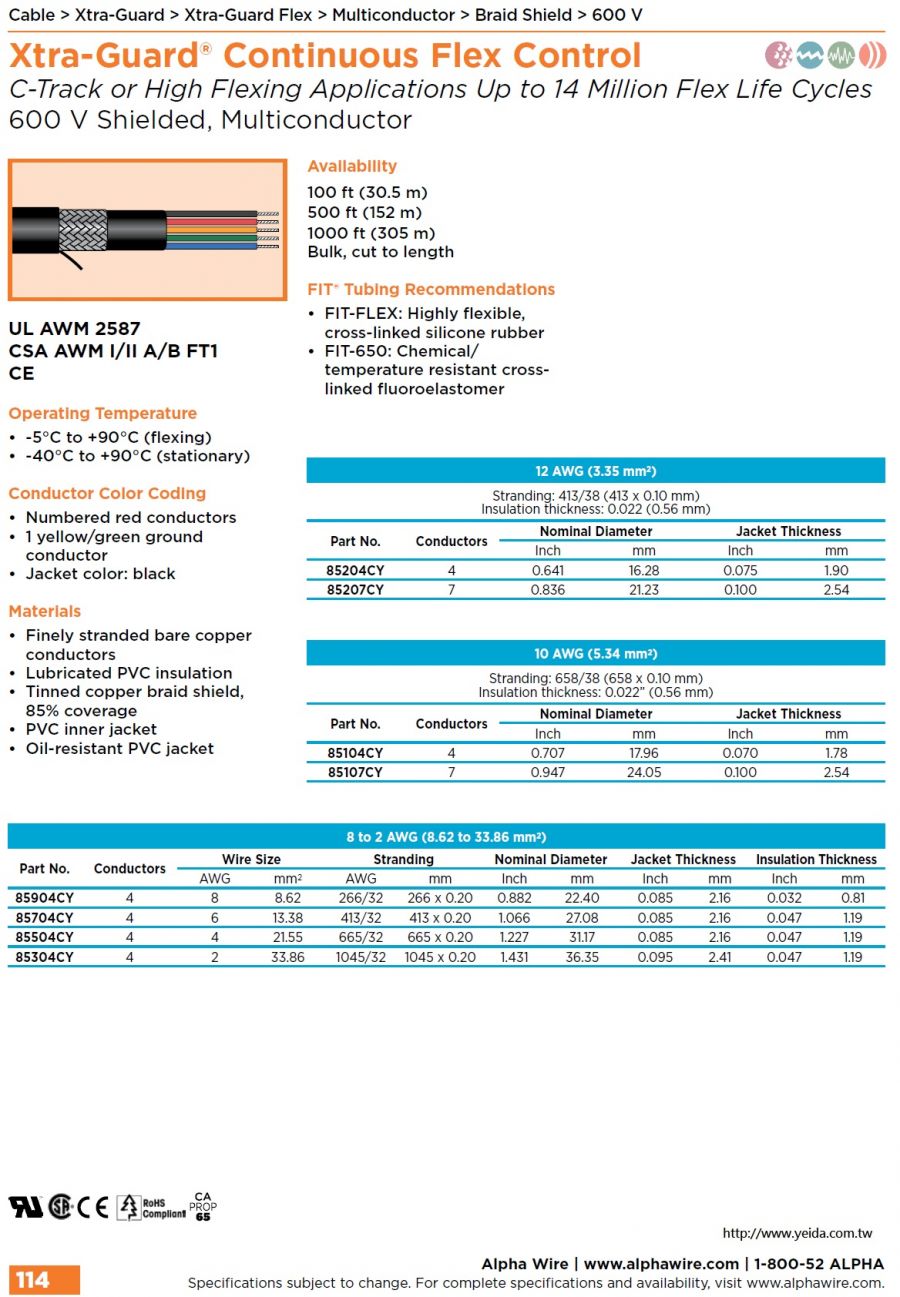

    Xtra-Guard® Continuous Flex Control
    C-Track or High Flexing Applications Up to 14 Million Flex Life Cycles
    600 V Shielded, Multiconductor
    UL AWM 2587
    CSA AWM I/II A/B FT1
    CE


    Operating Temperature
    • -5°C to +90°C (flexing)
    • -40°C to +90°C (stationary) Conductor Color Coding
    • Numbered red conductors
    • 1 yellow/green ground conductor
    • Jacket color: black
    Materials
    • Finely stranded bare copper conductors
    • Lubricated PVC insulation
    • Tinned copper braid shield, 85% coverage
    • PVC inner jacket
    • Oil-resistant PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    FIT® Tubing Recommendations
    • FIT-FLEX: Highly flexible, cross-linked silicone rubber
    • FIT-650: Chemical/ temperature resistant crosslinked fluoroelastomer

    Awg12: Alpha85204CY, Alpha85207CY, Awg10: Alpha85104CY, Alpha85107CY, Alpha85904CY, Alpha85704CY, Alpha85504CY, Alpha85304CY,
