    首頁 > > ALPHA-Xtra-Guard® Continuous Flex Control 高柔性、連續灣曲控制電缆

    ALPHA85104 Xtra-Guard Continuous Flex Cable C-Track or High Flexing Up to 14 Million Flex Life Cycles 600 V Unshielded,(Awg12, 10, 8to2)Multiconductor UL2587超柔軟高性能控制电缆
    看原圖
    		ALPHA-85204

    商品編號: ALPHA-85204

    ALPHA85704 Xtra-Guard Continuous Flex Cable C-Track or High Flexing Up to 14 Million Flex Life Cycles 600 V Unshielded,(Awg12, 10, 8to2)Multiconductor UL2587超柔軟高性能控制电缆

    Awg12: Alpha85204, Alpha85207, Awg10: Alpha85104, Alpha85107, Alpha85904, Alpha85704,  Alpha85504, Alpha85304,



    Xtra-Guard® Continuous Flex Control
    C-Track or High Flexing Applications Up to 14 Million Flex Life Cycles


    600 V Unshielded, Multiconductor
    UL AWM 2587
    CSA AWM I/II A/B FT1 CE
    Operating Temperature
    • -5°C to +90°C (flexing)
    • -40°C to +90°C (stationary)
    Conductor Color Coding
    • Numbered red conductors
    • 1 yellow/green ground conductor
    • Jacket color: black                                                                                                                                                                  Materials
    • Finely stranded tinned copper conductors
    • Lubricated PVC insulation
    • Oil-resistant PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    　

    FIT® Tubing Recommendations
    • FIT-FLEX: Highly flexible, cross-linked silicone rubber
    • FIT-650: Chemical/ temperature resistant crosslinked fluoroelastomer

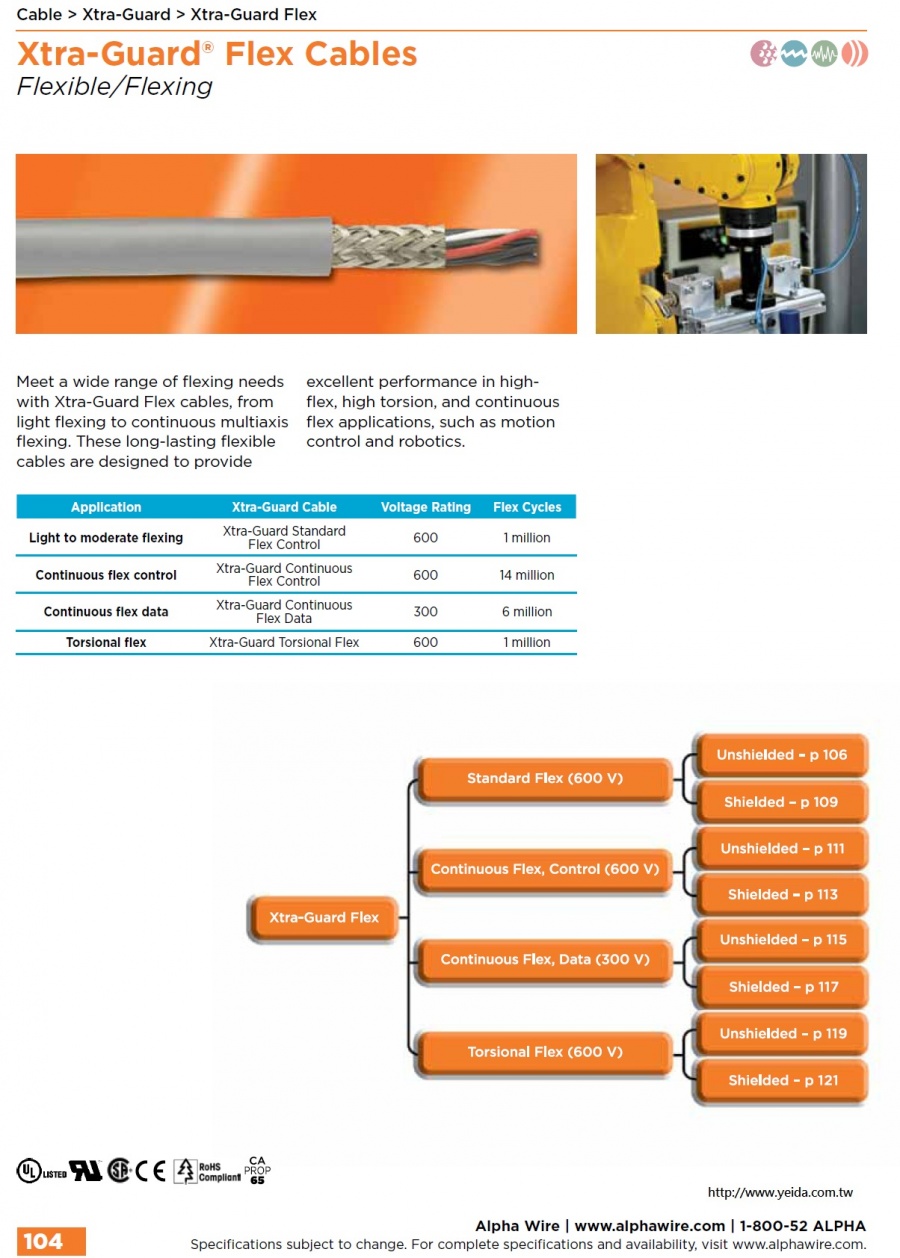

    Xtra-Guard® Flex - Wide variety of flexing applications Oil, Chemicals, Solvents, FuelsAbrasionEMI NoiseFlexing
    • Long-lasting flexible cables designed to provide excellent performance in high-flex, high torsion, and continuous-flex applications, such as motion control and robotics
    • Rated for up to 14 million flex cycles
    • Available in a variety of configurations allowing exactly the right cable to be selected for the application
    • Rounded geometry helps insure a liquid-tight installation per IP67 or NEMA 6
    • Supra-Shield provides precise EMI interference resistance for your specific application is easily achievable with the available standard flex, torsional flex, and continuous flex applications
    • Meets NFPA Standard 79 for industrial machinery*

    适 用于 各种类型的挠曲应用 Oil, Chemicals, Solvents, FuelsAbrasionEMI NoiseFlexing

    • 持久耐用的柔性电缆设计，在高柔性、高扭曲和连续弯曲应用（例如运动控制和机器人系统）中表现出优异的性能
    • 最多1400 万次挠曲循环运动
    • 可提供系列配置，并为应用选择完全适用的电缆
    • 圆形构造，有助于确保按 IP-67 或 NEMA 6进行紧凑安装
    • 在标准挠曲、扭转挠曲和连续挠曲应用中， Supra-Shield 可为您的特定应用轻松实现精准的电磁干扰保护

    Awg12: Alpha85204, Alpha85207, Awg10: Alpha85104, Alpha85107, Alpha85904, Alpha85704,  Alpha85504, Alpha85304,
