Awg20: Alpha65002, Alpha65003, Alpha65005, Alpha65007, Alpha65009, Alpha65012, Alpha65018, Alpha65025,

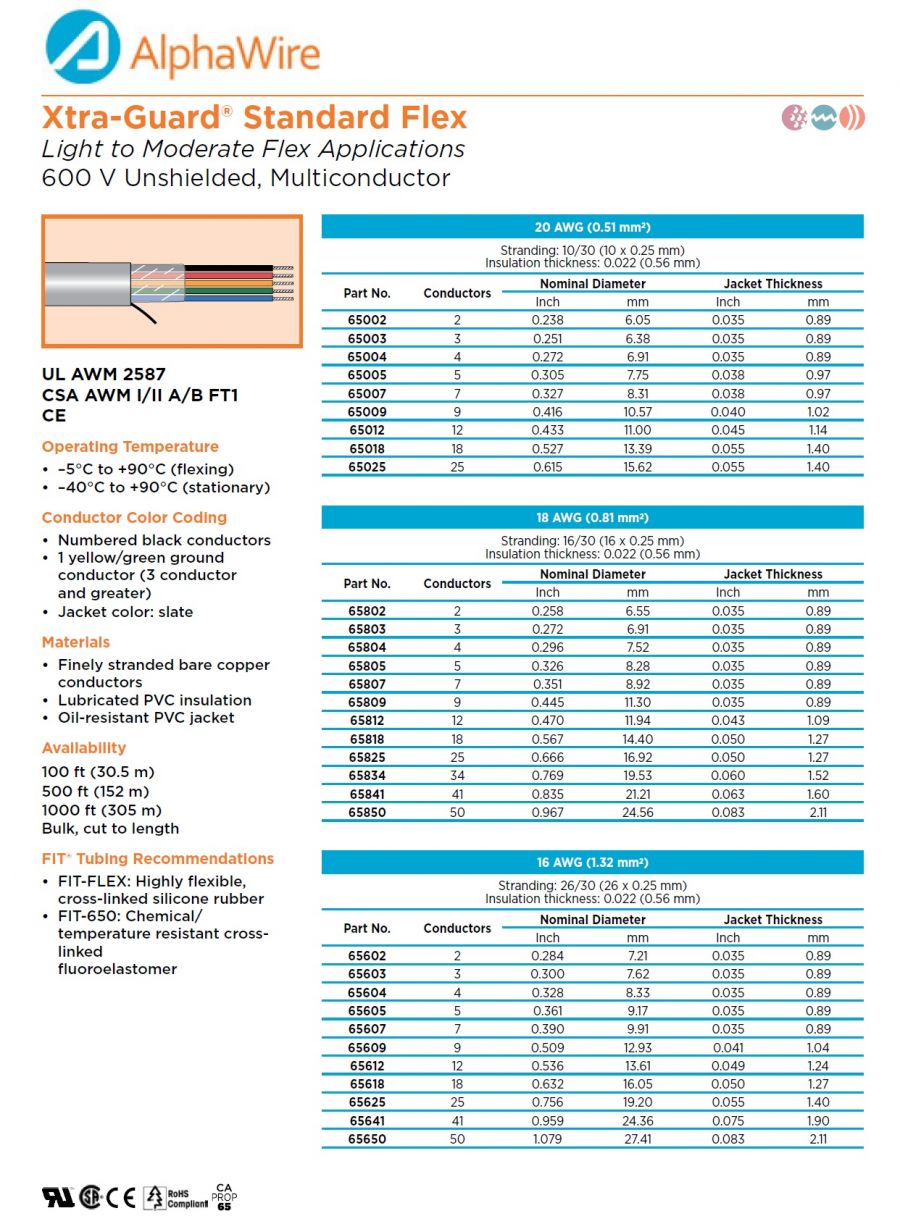

Xtra-Guard® Standard Flex
Light to Moderate Flex Applications
　

600 V Unshielded, Multiconductor
UL AWM 2587
CSA AWM I/II A/B FT1
CE
Operating Temperature
• –5°C to +90°C (flexing)
• –40°C to +90°C (stationary)
Conductor Color Coding
• Numbered black conductors
• 1 yellow/green ground conductor (3 conductor and greater)
• Jacket color: slate
Materials
• Finely stranded bare copper conductors
• Lubricated PVC insulation
• Oil-resistant PVC jacket
Availability
100 ft (30.5 m)
500 ft (152 m)
1000 ft (305 m)
Bulk, cut to length
FIT® Tubing Recommendations
• FIT-FLEX: Highly flexible, cross-linked silicone rubber
• FIT-650: Chemical/ temperature resistant crosslinked fluoroelastomer

Xtra-Guard® Flex - Wide variety of flexing applications

• Long-lasting flexible cables designed to provide excellent performance in high-flex, high torsion, and continuous-flex applications, such as motion control and robotics
• Rated for up to 14 million flex cycles
• Available in a variety of configuratio
•
•
• ns allowing exactly the right cable to be selected for the application
• Rounded geometry helps insure a liquid-tight installation per IP67 or NEMA 6
• Supra-Shield provides precise EMI interference resistance for your specific application is easily achievable with the available standard flex, torsional flex, and continuous flex applications
• Meets NFPA Standard 79 for industrial machinery



•
•
