    首頁 > > ALPHA-Xtra-Guard® Standard Flex高柔性控制電缆

    ALPHA 65203, Xtra-Guard Flex Cables (Awg 14, 12, 10, 8) UNSHIELDED Flex Cycles:1 million高柔性、高扭曲和連續弯曲高性能电缆
    看原圖
    		ALPHA-65402

    商品編號: ALPHA-65402

    ALPHA 65904, Xtra Guard, Flex Cables, PVC-PVC, UL2587,     VDE 0472, 600V Flex Cycles:1 million 高柔性耐油高扭曲和連續弯曲一百萬次高性能移動電纜

    Awg14: Alpha65402, Alpha65403, Alpha65404, Alpha65405, Alpha65407, Alpha65409, Alpha65412, Alpha65418, Alpha65425,

    Awg12: Alpha65203, Alpha65204, Alpha65205, Alpha65207,

    Awg10: Alpha65103, Alpha65104, Alpha65105,

    Awg8: Alpha65904, Alpha65905,

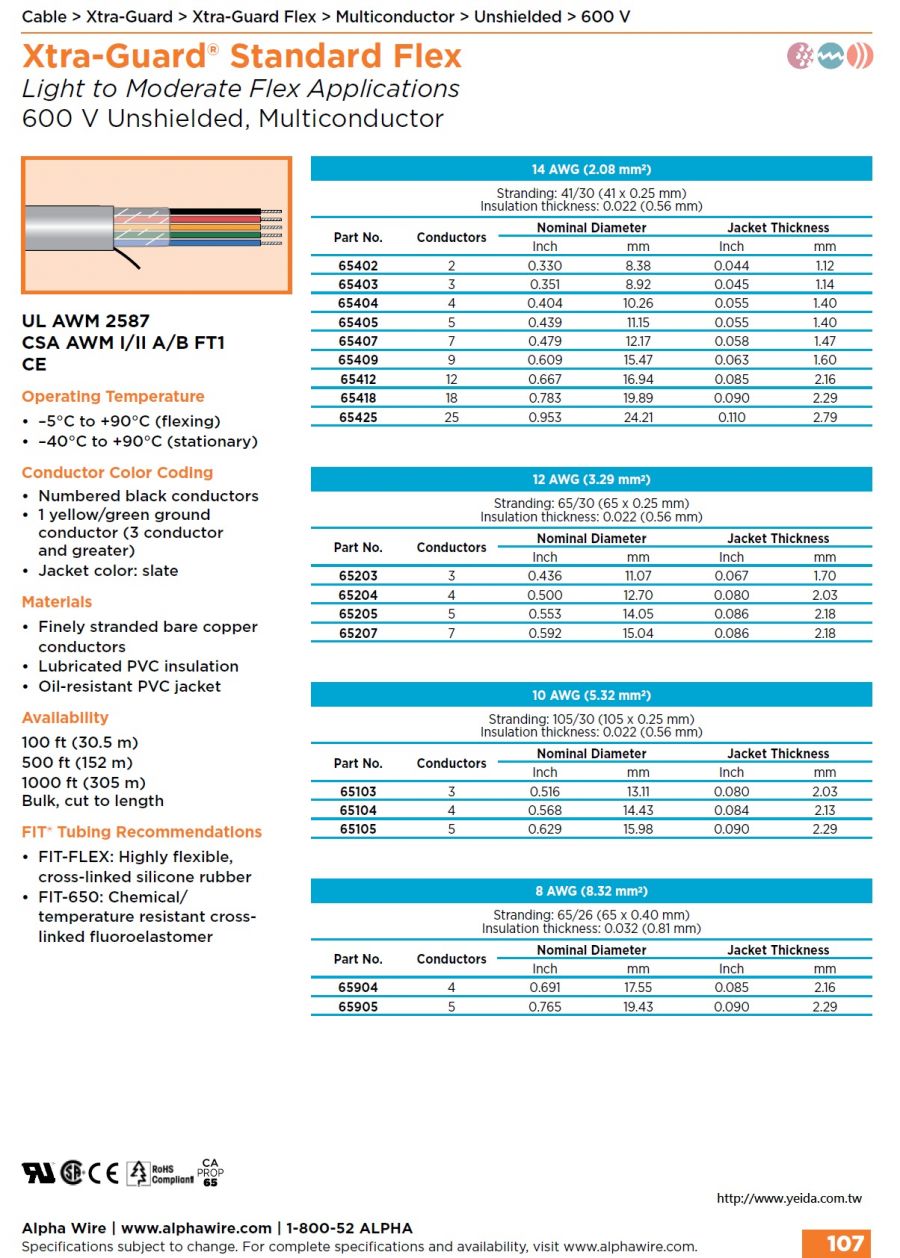

    Xtra-Guard® Standard Flex
    Light to Moderate Flex Applications
    　

    600 V Unshielded, Multiconductor
    UL AWM 2587
    CSA AWM I/II A/B FT1
    CE
    Operating Temperature
    • –5°C to +90°C (flexing)
    • –40°C to +90°C (stationary)
    Conductor Color Coding
    • Numbered black conductors
    • 1 yellow/green ground conductor (3 conductor and greater)
    • Jacket color: slate
    Materials
    • Finely stranded bare copper conductors
    • Lubricated PVC insulation
    • Oil-resistant PVC jacket
    Availability
    100 ft (30.5 m)
    500 ft (152 m)
    1000 ft (305 m)
    Bulk, cut to length
    FIT® Tubing Recommendations
    • FIT-FLEX: Highly flexible, cross-linked silicone rubber
    • FIT-650: Chemical/ temperature resistant crosslinked fluoroelastomer

    Xtra-Guard® Flex - Wide variety of flexing applications Oil, Chemicals, Solvents, FuelsAbrasionEMI NoiseFlexing
    • Long-lasting flexible cables designed to provide excellent performance in high-flex, high torsion, and continuous-flex applications, such as motion control and robotics
    • Rated for up to 14 million flex cycles
    • Available in a variety of configurations allowing exactly the right cable to be selected for the application
    • Rounded geometry helps insure a liquid-tight installation per IP67 or NEMA 6
    • Supra-Shield provides precise EMI interference resistance for your specific application is easily achievable with the available standard flex, torsional flex, and continuous flex applications
    • Meets NFPA Standard 79 for industrial machinery*

    適 用於 各種類型的撓曲應用 Oil, Chemicals, Solvents, FuelsAbrasionEMI NoiseFlexing

    • 持久耐用的柔性電纜設計，在高柔性、高扭曲和連續彎曲應用（例如運動控制和機器人系統）中表現出優異的性能
    • 最多1400 萬次撓曲循環運動
    • 可提供系列配置，并为应用选择完全适用的电缆
    • 圓形構造，有助於確保按 IP-67 或 NEMA 6進行緊湊安裝
    • 在標準撓曲、扭轉撓曲和連續撓曲應用中， Supra-Shield 可為您的特定應用輕鬆實現精準的電磁干擾保護

    -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

    Awg12: Alpha65203, Alpha65204, Alpha65205, Alpha65207,

    Awg10: Alpha65103, Alpha65104, Alpha65105,

    Awg8: Alpha65904, Alpha65905,
    Awg14: Alpha65402, Alpha65403, Alpha65404, Alpha65405, Alpha65407, Alpha65409, Alpha65412, Alpha65418, Alpha65425,
