TIMES LMR200 Flexible Low Loss Communications Coax ( LMR-200 50歐姆低損耗同軸電纜 接頭 工具及跳線組裝)
• Jumper Assemblies in Wireless Communications Systems
• Short Antenna Feeder runs
• Any application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax,
SCADA, Mobile Antennas) requiring an easily routed,
low loss RF cable
Flexible Low Loss Coaxial Cable Connectors
Install Tools Hardware Accessories
LMR®-200
Flexible Low Loss Communications Coax
LMR-200
Ideal for…
• Jumper Assemblies in Wireless Communications Systems
• Short Antenna Feeder runs
• Any application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMax,
SCADA, Mobile Antennas) requiring an easily routed,
low loss RF cable
• LMR® standard is a UV Resistant Polyethylene jacketed
cable designed for 20-year service outdoor use. The
bending and handling characteristics are significantly better
than air-dielectric and corrugated hard-line cables.
• LMR®- DB is identical to standard LMR plus has the
advantage of being watertight. The addition of
waterproofing compound in and around the foil/braid
insures continuous reliable service should the jacket be
inadvertently damaged during installation or in the future.
• LMR®- FR is a non-halogen (non-toxic), low smoke,
fire retardant cable designed for in-building runs that can
be routed anywhere except air handling plenums.
LMR-FR is UL/NEC & CSA rated‘CMR’ and ‘FT4’
respectively, meets FAA FAR25 requirements and is
MSHA-P for mining applications.
• LMR®- FR-PVC is a general-purpose indoor cable
and has a UL/NEC & CSA rating of ‘CMR’ and ‘FT4’
respectively. It is less expensive than LMR-FR, however
it emits toxic fumes (HCL) and greater smoke density
when burned.
• LMR®- PVC is designed for low loss general-purpose
applications and is somewhat more flexible
than the standard polyethylene jacketed LMR.
• LMR®- PVC-W is a white-jacketed version of LMRP
V C f o r m a r i n e a n d o t h e r a p p l i c a t i o n s
where color compatibility is desired.
• LMR®- MA is a flexible cable designed specifically
for mobile antenna applications. It has a PVC jacket and
un-bonded aluminum tape to facilitate end stripping with
automated equipment.
• Low Loss is another hallmark feature of LMR-200.
Size for size LMR has the lowest loss of any flexible cable
and comparable loss to semirigid hard-line cables.
• RF Shielding is 50 dB greater than typical single
shielded coax (40 dB). The multi-ply bonded foil outer
conductor is rated conservatively at > 90 dB (i.e. >180
dB between two adjacent cables).
• Weatherability: LMR-200 cables designed for
outdoor exposure incorporate the best materials for UV
resistance and have life expectancy in excess of 20 years.

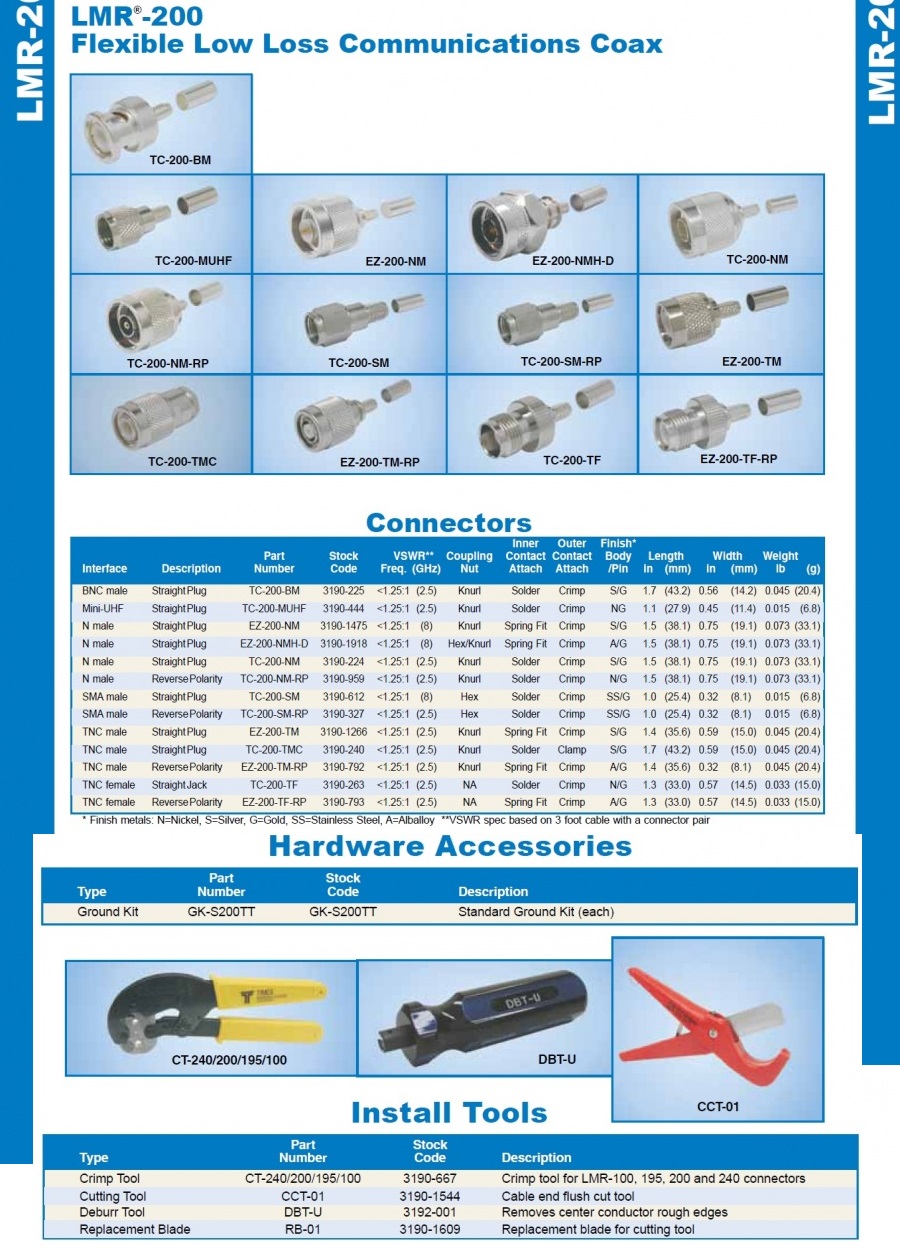

• Connectors: A wide variety of connectors are available
for LMR-200 cable, including all common interface types,
reverse polarity, and a choice of solder or non-solder
center pins. Most LMR connectors employ crimp outer
attachment using standard hex crimp sizes.
• Cable Assemblies: All LMR-200 cable types are
available as pre-terminated cable assemblies. Refer to
the section on FlexTech for further details.
• Flexibility and bendability are hallmarks of the LMR-
200 cable design. The flexible outer conductor enables
the tightest bend radius available for any cable of similar
size and performance.
