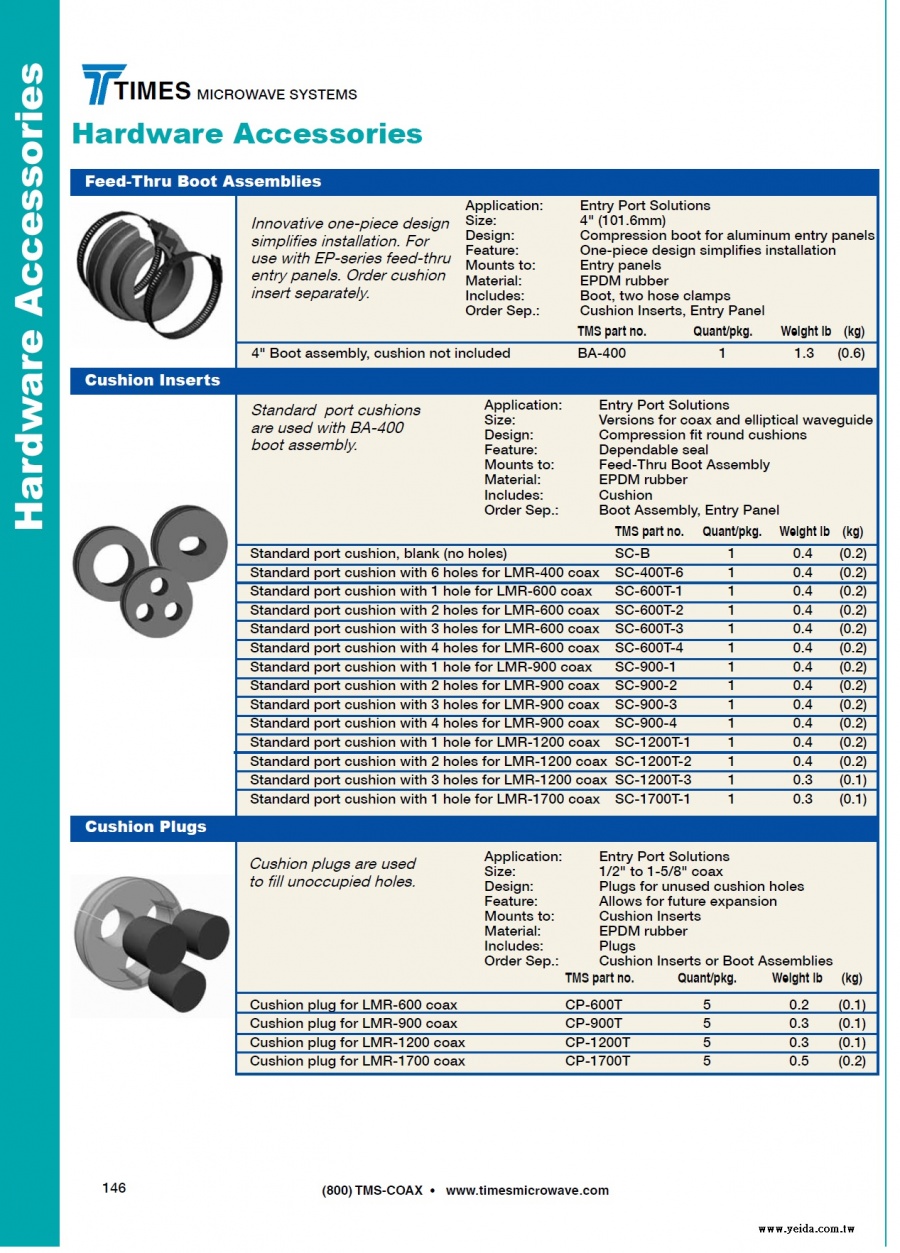

Feed-Thru Boot Assemblies
Innovative one-piece design
simplifies installation. For
use with EP-series feed-thru
entry panels. Order cushion
insert separately.
Application: Entry Port Solutions
Size: 4" (101.6mm)
Design: Compression boot for aluminum entry panels
Feature: One-piece design simplifies installation
Mounts to: Entry panels
Material: EPDM rubber
Includes: Boot, two hose clamps
Order Sep.: Cushion Inserts, Entry Panel
TMS part no. Quant/pkg. Weight lb (kg)
4" Boot assembly, cushion not included BA-400

Cushion Plugs
Cushion plugs are used
to fill unoccupied holes.
Application: Entry Port Solutions
Size: 1/2" to 1-5/8" coax
Design: Plugs for unused cushion holes
Feature: Allows for future expansion
Mounts to: Cushion Inserts
Material: EPDM rubber
Includes: Plugs
Order Sep.: Cushion Inserts or Boot Assemblies
TMS part no. Quant/pkg. Weight lb (kg)
Cushion plug for LMR-600 coax CP-600T
Cushion plug for LMR-900 coax CP-900T
Cushion plug for LMR-1200 coax CP-1200T
Cushion plug for LMR-1700 coax CP-1700T

Cushion Inserts
Standard port cushions
are used with BA-400
boot assembly.
Application: Entry Port Solutions
Size: Versions for coax and elliptical waveguide
Design: Compression fit round cushions
Feature: Dependable seal
Mounts to: Feed-Thru Boot Assembly
Material: EPDM rubber
Includes: Cushion
Order Sep.: Boot Assembly, Entry Panel

TMS part no. Quant/pkg. Weight lb (kg)
Standard port cushion, blank (no holes) SC-B 1 0.4 (0.2)
Standard port cushion with 6 holes for LMR-400 coax SC-400T-6
Standard port cushion with 1 hole for LMR-600 coax SC-600T-1
Standard port cushion with 2 holes for LMR-600 coax SC-600T-2
Standard port cushion with 3 holes for LMR-600 coax SC-600T-3
Standard port cushion with 4 holes for LMR-600 coax SC-600T-4
Standard port cushion with 1 hole for LMR-900 coax SC-900-1
Standard port cushion with 2 holes for LMR-900 coax SC-900-2
Standard port cushion with 3 holes for LMR-900 coax SC-900-3
Standard port cushion with 4 holes for LMR-900 coax SC-900-4
Standard port cushion with 1 hole for LMR-1200 coax SC-1200T-1
Standard port cushion with 2 holes for LMR-1200 coax SC-1200T-2
Standard port cushion with 3 holes for LMR-1200 coax SC-1200T-3
Standard port cushion with 1 hole for LMR-1700 coax SC-1700T-1
