    首頁 > > ALPHA-FIT® Special-Application Tubing 特殊比率材質熱縮管

    ALPHA- SPCM Heat Shrink Tubing 3:1 Shrink Ratio, XLPO, Medium Wall, Thermoplastic Bonding Layer 交連 PO 熱縮管
    看原圖
    		ALPHA-SPCM400

    商品編號: ALPHA-SPCM400

    ALPHA- SPCM Heat Shrink Tubing 3:1 Shrink Ratio, XLPO, Medium Wall, Thermoplastic Bonding Layer 交連 PO 熱縮管

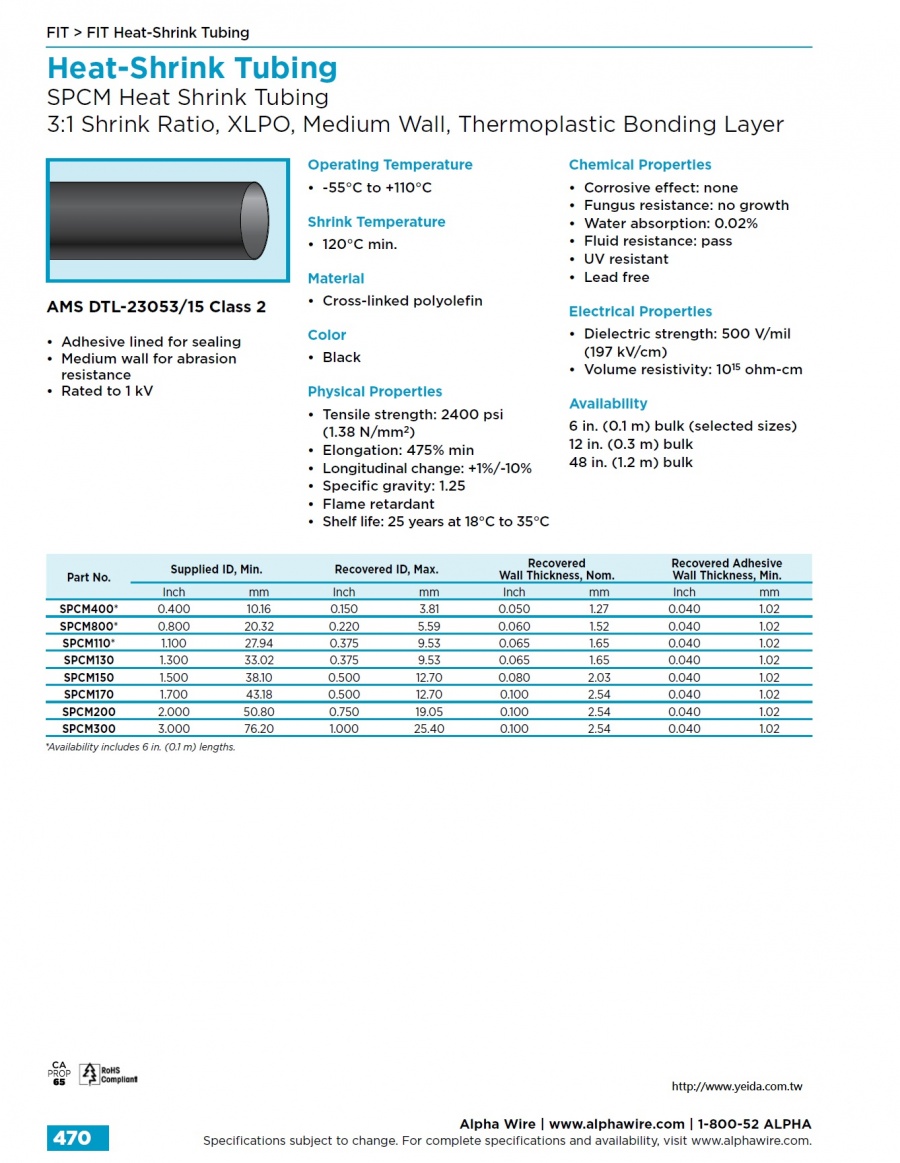

    SPCM Heat Shrink Tubing
    3:1 Shrink Ratio, XLPO, Medium Wall, Thermoplastic Bonding Layer
    AMS DTL-23053/15 Class 2
    • Adhesive lined for sealing
    • Medium wall for abrasion resistance
    • Rated to 1 kV
    Operating Temperature
    • -55°C to +110°C
    Shrink Temperature
    • 120°C min.
    Material
    • Cross-linked polyolefin
    Color
    • Black
    Physical Properties
    • Tensile strength: 2400 psi (1.38 N/mm2)
    • Elongation: 475% min
    • Longitudinal change: +1%/-10%
    • Specific gravity: 1.25
    • Flame retardant
    • Shelf life: 25 years at 18°C to 35°C
    Chemical Properties
    • Corrosive effect: none
    • Fungus resistance: no growth
    • Water absorption: 0.02%
    • Fluid resistance: pass
    • UV resistant
    • Lead free
    Electrical Properties
    • Dielectric strength: 500 V/mil (197 kV/cm)
    • Volume resistivity: 1015 ohm-cm
    Availability
    6 in. (0.1 m) bulk (selected sizes)
    12 in. (0.3 m) bulk
    48 in. (1.2 m) bulk

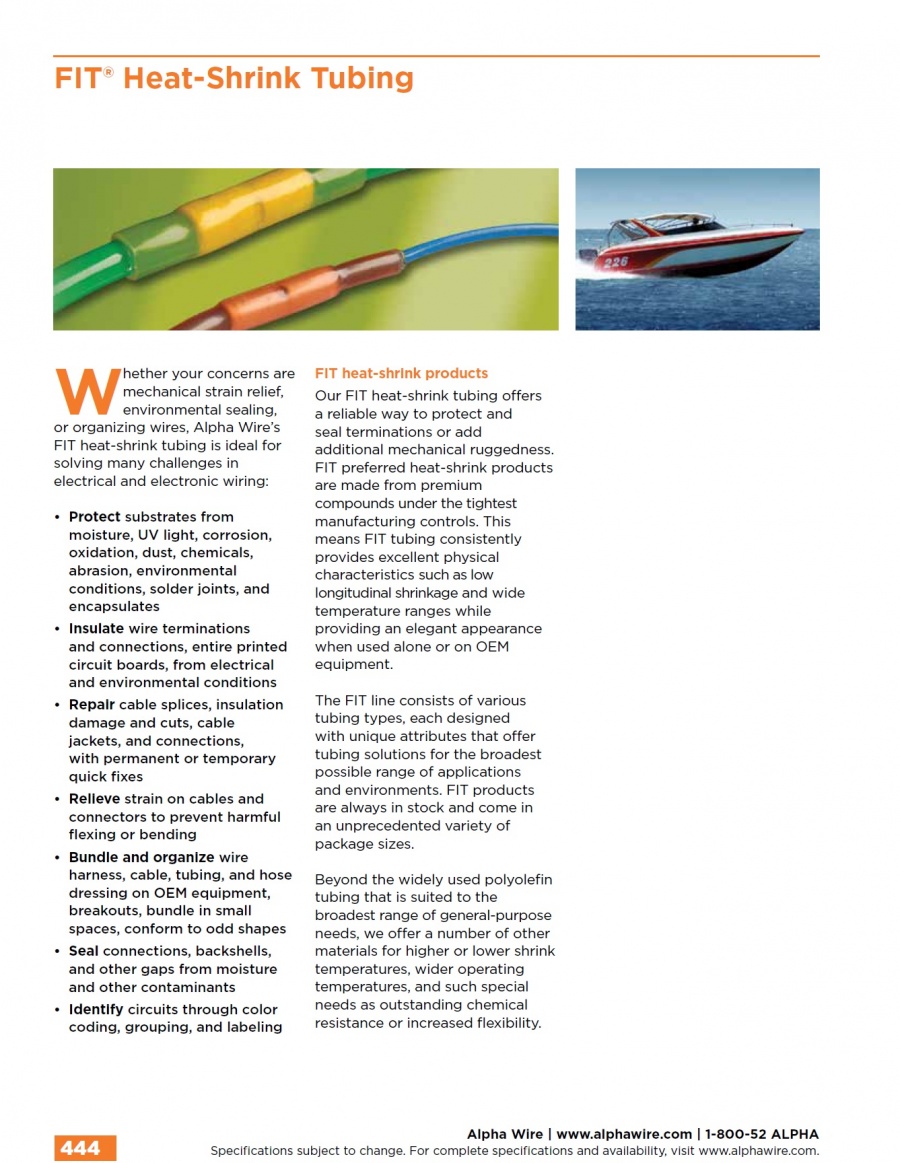

    The perfect FIT for any need

    Need to protect a crimped terminal mechanically or environmentally? Color code wires for easy circuit identification? Make fast, reliable repairs to nicked or worn insulation? Whether your concerns are mechanical strain relief, environmental sealing, or organizing wires, Alpha Wire’s FIT® heat-shrink tubing is ideal for solving many challenges in electrical and electronic wiring.

    完美地满足任何需求

    需要保护压接终端免受机械磨损和环境影响吗？ 需要使用不同颜色标记线路吗？ 要快速、可靠地修复绝缘缺口或磨损吗？无论您关注的是机械应力释放、环境密封或电线管理，Alpha Wire 的 FIT® 热缩管都非常适合用于解决电气和电子布线中出现的许多问题。


    　 Part # Shrink Ratio　 Material Min Supplied ID　 Max Recovered ID Nom Recovered Wall　 Temperature
    SPC-110 3:1 IRR PO w/Thermoplastic Adhesive 1.1 0.375 0.105 -55 to 110 CA Prop 65, RoHS
    SPC-150 3:1 IRR PO w/Thermoplastic Adhesive 1.5 0.5 0.12 -55 to 110
    SPC-200 3:1 IRR PO w/Thermoplastic Adhesive 2 0.75 0.12 -55 to 110
    SPC-300 3:1 IRR PO w/Thermoplastic Adhesive 3 1 0.12 -55 to 110
    SPC-400 3:1 IRR PO w/Thermoplastic Adhesive 0.4 1 0.12 -55 to 110
    SPC-800-48 3:1 PO 0.8 0.2 0.11 -55 to 150 AMS DTL-23053/15, CL 1, UL, UL 486D
    SPCM-110 3:1 IRR PO w/Thermoplastic Adhesive 1.1 0.375 0.05 -55 to 110
    SPCM-130 3:1 IRR PO w/Thermoplastic Adhesive 1.3 0.375 0.065 -55 to 110
    SPCM-150 3:1 IRR PO w/Thermoplastic Adhesive 1.5 0.5 0.08 -55 to 110
    SPCM-170 3:1 IRR PO w/Thermoplastic Adhesive 1.7 0.5 0.1 -55 to 110
    SPCM-200 3:1 IRR PO w/Thermoplastic Adhesive 2 0.75 0.1 -55 to 110 AMS DTL-23053/15, CA Prop 65, RoHS
    SPCM-300 3:1 IRR PO w/Thermoplastic Adhesive 3 1 0.1 -55 to 110
    SPCM-400 3:1 IRR PO w/Thermoplastic Adhesive 0.4 0.15 0.05 -55 to 110
    SPCM-800 3:1 IRR PO w/Thermoplastic Adhesive 0.8 0.22 0.06 -55 to 110
