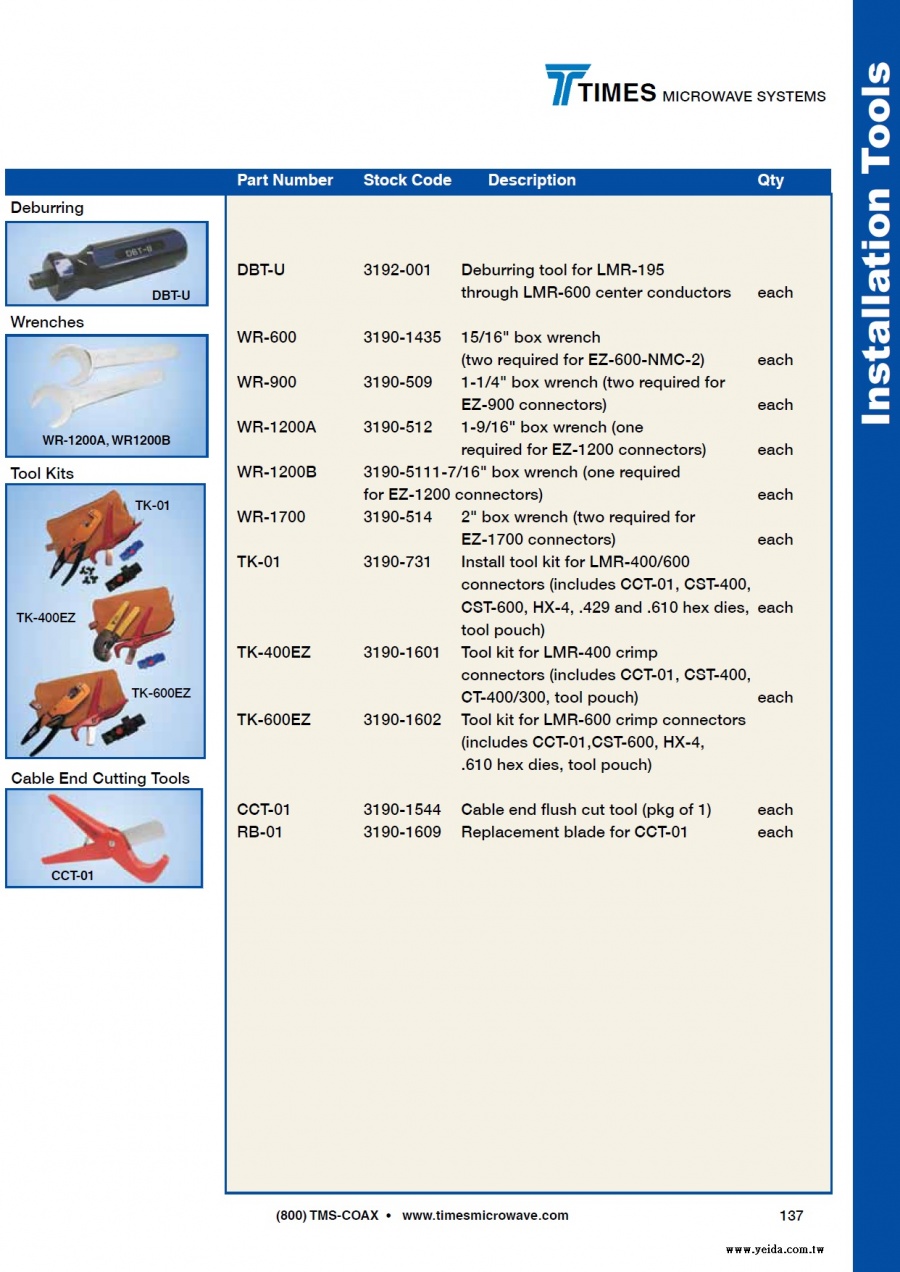

Part Number Stock Code      Description

DBT-U 3192-001                 Deburring tool for LMR-195
                                                     through LMR-600 center conductors
WR-600 3190-1435                 15/16" box wrench
                                                    (two required for EZ-600-NMC-2)
WR-900 3190-509                   1-1/4" box wrench (two required for
                                                    EZ-900 connectors)
WR-1200A 3190-512              1-9/16" box wrench (one
                                                    required for EZ-1200 connectors)
WR-1200B 3190-511           1-7/16" box wrench (one required
                                                    for EZ-1200 connectors)
WR-1700 3190-514             2" box wrench (two required for
                                                    EZ-1700 connectors)
TK-01 3190-731                      Install tool kit for LMR-400/600
                                                    connectors (includes CCT-01, CST-400,
                                                    CST-600, HX-4, .429 and .610 hex dies, each
                                                    tool pouch)
TK-400EZ 3190-1601            Tool kit for LMR-400 crimp
                                                    connectors (includes CCT-01, CST-400,
                                                    CT-400/300, tool pouch)
TK-600EZ 3190-1602             Tool kit for LMR-600 crimp connectors
                                                    (includes CCT-01,CST-600, HX-4,
                                                     .610 hex dies, tool pouch)
CCT-01 3190-1544                 Cable end flush cut tool (pkg of 1) each
RB-01 3190-1609                    Replacement blade for CCT-01 each
                                                    Installation Tools

Engineered Products
FlexTech™ Commercial Cable
Assemblies: The use of higher frequencies for
telecommunications applications has placed increasingly
rigorous demands on cable assembly performance.
Our 50 year plus background in military microwave
assemblies has provided us the expertise to address
these performance requirements, while our commercial
expertise allows us to provide economical solutions.
FlexTech™ jumper assemblies furnished standard with
LMR-DB cable provide rugged dependability for any
application.
　

FBT® Flexible Low Loss High Power
Cable: FBT® is a flexible low loss indoor/outdoor
highly fire retardant cable suitable for use up to 150°C.
Intended specifically for runs within and between base
station cabinets, it can also be used in return air
handling plenums or outdoors.
　

T-RAD™ 50 Ohm Leaky Feeder Cable:
T-RAD™ leaky feeder cables offer a cost effective
solution to providing RF coverage in enclosed areas.
The flexibility of the cable combined with quick
attachment connectors, allows the cable to be easily
installed, which is ideal for in-building applications.
　

SilverLine™: SilverLine™ Test Cables are cost
effective, durable, high-performance cable assemblies
designed for use in a broad range of test and
interconnect applications. Fabricated from rugged, solid
PTFE dielectric cable with stainless steel connectors
and a proven strain relief system, these cables provide
long life and excellent stability in applications where
they are repeatedly flexed and mated/unmated. They
are ideal for use in production, field and laboratory test
environments. They are also economical enough to be
used as interconnects in test systems.

LMR Bundled Cable: By bundling LMR®
cables together under a common polyethylene outer
jacket, this innovative design is the perfect solution for
Smart Antenna and other sector applications. LMR®
Bundled Cable greatly reduces the cost of installation
by slashing the cost of labor and accessories compared
to an installation using individual runs. LMR® Bundled
Cable is supplied as a complete system, including
weather seal breakout boots and ground kits with
full technical support and custom tools, pictorial
instructions and installation videos.

Certified Installer Training Program
The LMR® Certified Installer Training Program covers
all installation aspects of LMR coaxial transmission line
cables, connectors and components, including grounding.
Topics covered include:
• Coaxial cable fundamentals: characteristics,
attenuation, return loss
• LMR coaxial cable designs, features and benefits
• Connectors
• Various interfaces
• EZ (non-solder) vs. TC (solder style) of center
conductor attachment
• Clamp vs. crimp style connector attachments
• Impedance uniformity
• Other characteristics
• Connector termination demonstrations (EZ andTC),
using prep and installation tools on LMR-240, 400,
600 and 900 connectors and cables
• Attendee connector terminations
• EZ-400-NMH-X (3190-2590)
• EZ-400-NMH-RA-X (3190-2638)
Part # Description
CITP Certified Installer Training Program
• EZ-600-NMC-2 (3190-2641)
• EZ-900-NMC-2 (3190-1262)
• Attendees work with a full set of LMR tools and
test assemblies they build for attenuation and return
loss, using a hand held field analyzer
• Ground kit and weather sealing demonstrations
• SilverLine, QMA and TuffGrip demonstrations
• Radiating cable demonstrations
• LMR bundled cable with end cap and ground kit
demonstrations
This one day program is available to groups of 10 or
more and can be arranged through any Times distributor.
It can be held at a location convenient to the group, at the
Times Microwave location in Wallingford, Connecticut
or at a participating Times distribution partner location.
Attendees receive a certificate as a trained LMR installer.
Contact your local Times representative for details.
