DIGI-XTend-RF

商品編號: DIGI-XTend-RF

XTend OEM RF Modules長距離無線模組

XTend RF 長距離無線模組
* 採用高增益天線，室外可視傳送距離，可傳送達60 公里。
* 提供256位AES加密，提高資料傳輸的安全性。
* XTend RF 長距離無線模組，提供了前所未有的範圍，低成本的無線數據解決方案。

* Frequency Band：915 to 928 MHz, software selectable channel
* RF Data Rate：10,000 bps (@9,600 bps throughput data rate), 125,000 bps (@115,200 bps)
* 室內傳送距離：900 公尺 ( with 2.1 dB dipole antenna)
* 室外可視傳送距離：Up to 60 公里 (with high gain antenna); Up to 20 公里 (2.1 dB dipole antenna)
* 發射功率：1 mW - 1 W (0 - 30 dBm) software selectable
* 接收靈敏度：-110 dBm (@9,600 bps throughput data rate), -100 dBm (@115,200 bps)
* Spread Spectrum：FHSS (Frequency Hopping Spread Spectrum)
* Modulation：FSK (Frequency Shift Keying)
* Encryption：256-bit AES
* Networking Topologies：DigiMesh, Repeater, Point-to-Point, Point-to-Multipoint, Peer-to-Peer
* 工作溫度：-40° C to +85° C
* 安規認證：FCC、IC、C-TICK

XTend OEM RF Modules
XTend OEM RF modules provide unprecedented range in a low cost wireless data solution. The modules are easy to use, require minimal power
and provide reliable delivery of critical data between devices. Their small form factor saves valuable board space.

ue to innovations stamped in its design, the XTend module supplies two to eight times the range of other modules operating within the
unlicensed 900 MHz frequency band. The range gained by OEMs and integrators is due to proprietary technologies embedded into each module
such as superior RX (receiver) sensitivity, interference immunity, modulation/demodulations techniques, and others.

No configuration is necessary for out of box RF communications. The modules default configuration supports a wide range of data system
applications. Advanced configurations can be implemented using simple AT or binary commands.

Product summary:
* ISM 900 MHz operating frequency
* 1 mW - 1 Watt power output (up to 40 mile range)
* 256-bit AES Encryption
* Several advanced networking options and topologies supported
* Approved for use in the United States, Canada, and Australia (XTH9)
* Available with DigiMesh

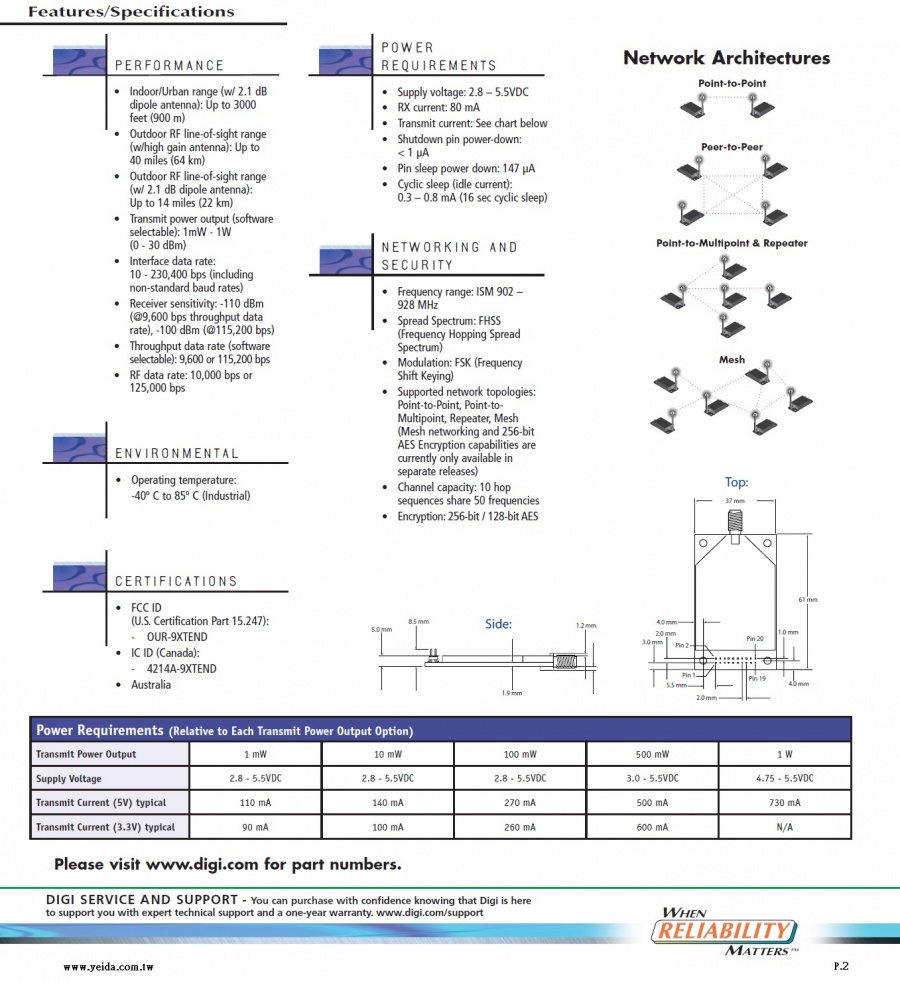

Performance
* Power output: 1 mW - 1 Watt (0 - 30 dBm), software selectable
* Indoor/Urban range: Up to 3000 ft (900 m)
* Outdoor/RF line-of-sight range: up to 40 miles (64 km)
* RF data rate: 9.6 or 115.2 Kbps
* Interface data rate: Up to 230.4 Kbps
* Receiver sensitivity: -110 dBm (@ 9600 bps)

Networking
* Spread Spectrum type: FHSS (Frequency Hopping Spread Spectrum)
* Networking topology: DigiMesh?, peer-to-peer, point-to-point, point-to-multipoint, and repeater
* Error handling: Retries & acknowledgements, multiple transmissions
* Filtration options: VID (Vendor ID Number), channels and addressing
* Channel capacity: 10 hop sequences share 50 frequencies
* Addressing: 65,000 network addresses available for each channel
* Encryption: 256-bit AES

General
* Size: 1.44 in x 2.38 in x 0.20 in (3.65 cm x 6.05 cm x 0.51 cm)
* Weight: 0.64 oz (18 g)
* Antenna options: RPSMA or MMCX connections
* Operating temperature: -40° C to 85° C (industrial)
開發套件
XTend Development Kit - 900 MHz, 1W, 115 Kbps, includes:
(1) XTend w/ MMCX Connector
(1) XTend w/ RPSMA Connector
(2) RS-232 Development Boards
(1) 900 MHz RPSMA Antenna
(2) 900 MHz MMCX Antenna
(2) RS-232 Serial Cables
(2) Power Adapters
(1) 9V Battery Clip
