NAVSEA Designs

Times軍規同軸電纜詳細規格請參考圖檔

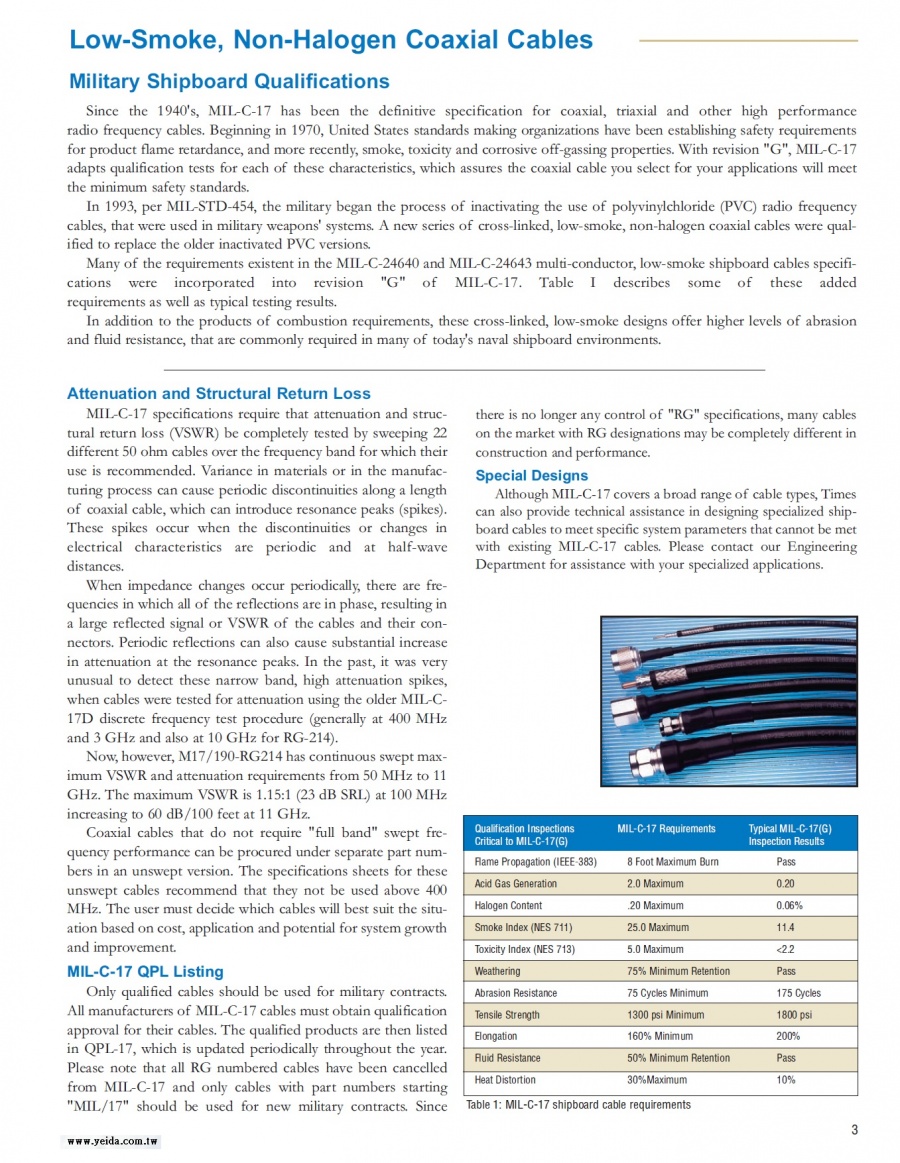

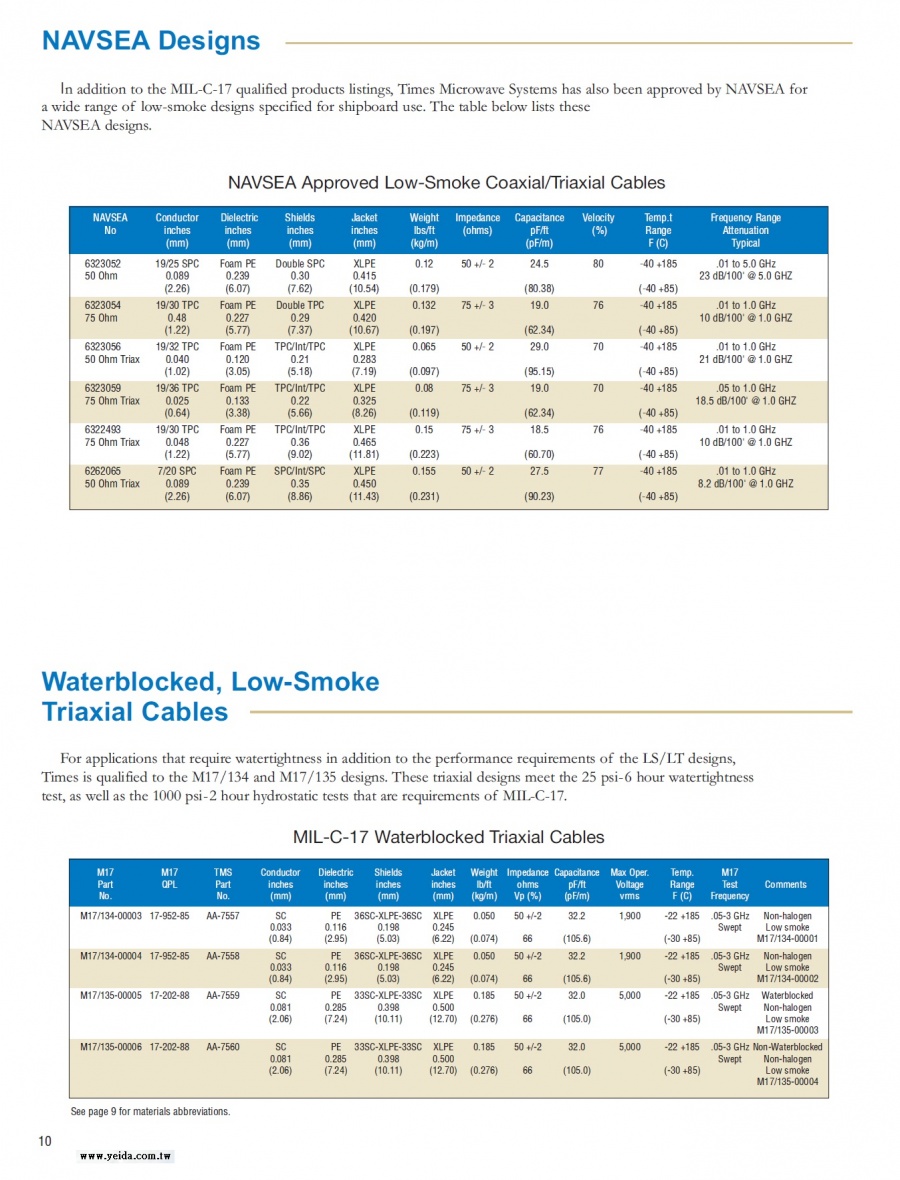

NAVSEA Approved Low-Smoke Coaxial/Triaxial Cables
In addition to the MIL-C-17 qualified products listings, Times Microwave Systems has also been approved by NAVSEA for
a wide range of low-smoke designs specified for shipboard use. The table below lists these
NAVSEA designs

NAVSEA Conductor Dielectric Shields Jacket Weight Impedance Capacitance Velocity Temp.t Frequency Range
No inches inches inches inches lbs/ft (ohms) pF/ft (%) Range Attenuation
　

(mm) (mm) (mm) (mm) (kg/m) (pF/m) F (C) Typical
6323052 19/25 SPC Foam PE Double SPC XLPE 0.12 50 +/- 2 24.5 80 -40 +185 .01 to 5.0 GHz
50 Ohm 0.089 0.239 0.30 0.415 23 dB/100 @ 5.0 GHZ
(2.26) (6.07) (7.62) (10.54) (0.179) (80.38) (-40 +85)
6323054 19/30 TPC Foam PE Double TPC XLPE 0.132 75 +/- 3 19.0 76 -40 +185 .01 to 1.0 GHz
75 Ohm 0.48 0.227 0.29 0.420 10 dB/100 @ 1.0 GHZ
(1.22) (5.77) (7.37) (10.67) (0.197) (62.34) (-40 +85)
6323056 19/32 TPC Foam PE TPC/Int/TPC XLPE 0.065 50 +/- 2 29.0 70 -40 +185 .01 to 1.0 GHz
50 Ohm Triax 0.040 0.120 0.21 0.283 21 dB/100 @ 1.0 GHZ
(1.02) (3.05) (5.18) (7.19) (0.097) (95.15) (-40 +85)
6323059 19/36 TPC Foam PE TPC/Int/TPC XLPE 0.08 75 +/- 3 19.0 70 -40 +185 .05 to 1.0 GHz
75 Ohm Triax 0.025 0.133 0.22 0.325 18.5 dB/100 @ 1.0 GHZ
(0.64) (3.38) (5.66) (8.26) (0.119) (62.34) (-40 +85)
6322493 19/30 TPC Foam PE TPC/Int/TPC XLPE 0.15 75 +/- 3 18.5 76 -40 +185 .01 to 1.0 GHz
75 Ohm Triax 0.048 0.227 0.36 0.465 10 dB/100 @ 1.0 GHZ
(1.22) (5.77) (9.02) (11.81) (0.223) (60.70) (-40 +85)
6262065 7/20 SPC Foam PE SPC/Int/SPC XLPE 0.155 50 +/- 2 27.5 77 -40 +185 .01 to 1.0 GHz
50 Ohm Triax 0.089 0.239 0.35 0.450 8.2 dB/100 @ 1.0 GHZ
(2.26) (6.07) (8.86) (11.43) (0.231) (90.23) (-40 +85)

Waterblocked, Low-Smoke Triaxial Cables

For applications that require watertightness in addition to the performance requirements of the LS/LT designs,
Times is qualified to the M17/134 and M17/135 designs. These triaxial designs meet the 25 psi-6 hour watertightness
test, as well as the 1000 psi-2 hour hydrostatic tests that are requirements of MIL-C-17.

M17 M17 TMS Conductor Dielectric Shields Jacket Weight Impedance Capacitance Max Oper. Temp. M17
Part QPL Part inches inches inches inches lb/ft ohms pF/ft Voltage Range Test Comments
No. No. (mm) (mm) (mm) (mm) (kg/m) Vp (%) (pF/m) vrms F (C) Frequency
M17/134-00003 17-952-85 AA-7557 SC PE 36SC-XLPE-36SC XLPE 0.050 50 +/-2 32.2 1,900 -22 +185 .05-3 GHz Non-halogen
0.033 0.116 0.198 0.245 Swept Low smoke
(0.84) (2.95) (5.03) (6.22) (0.074) 66 (105.6) (-30 +85) M17/134-00001
M17/134-00004 17-952-85 AA-7558 SC PE 36SC-XLPE-36SC XLPE 0.050 50 +/-2 32.2 1,900 -22 +185 .05-3 GHz Non-halogen
0.033 0.116 0.198 0.245 Swept Low smoke
(0.84) (2.95) (5.03) (6.22) (0.074) 66 (105.6) (-30 +85) M17/134-00002
M17/135-00005 17-202-88 AA-7559 SC PE 33SC-XLPE-33SC XLPE 0.185 50 +/-2 32.0 5,000 -22 +185 .05-3 GHz Waterblocked
0.081 0.285 0.398 0.500 Swept Non-halogen
(2.06) (7.24) (10.11) (12.70) (0.276) 66 (105.0) (-30 +85) Low smoke
M17/135-00003
M17/135-00006 17-202-88 AA-7560 SC PE 33SC-XLPE-33SC XLPE 0.185 50 +/-2 32.0 5,000 -22 +185 .05-3 GHz Non-Waterblocked
0.081 0.285 0.398 0.500 Swept Non-halogen
(2.06) (7.24) (10.11) (12.70) (0.276) 66 (105.0) (-30 +85) Low smoke
M17/135-00004
