    Hosiwell-41011-NN-06 Strandard loose tube 62.5/125 OM1 fiber, Light-armored, PE Jacket 輕金屬鎧裝屋外型光纜
    看原圖
    		HOSIWELL-41011-NN-06


    商品編號: Hosiwell-41011-NN-06

    Hosiwell-41011-NN-06 Strandard loose tube 62.5/125 OM1 fiber, Light-armored, PE Jacket 輕金屬鎧裝屋外型光纜

    Stranded Loose Tube Light-armored Cable (GYTS)

    Product Description

    　


    The Fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath. Application: Duct / Aerial.
    Standard : YD/T 901-2001, IEC 60794-1

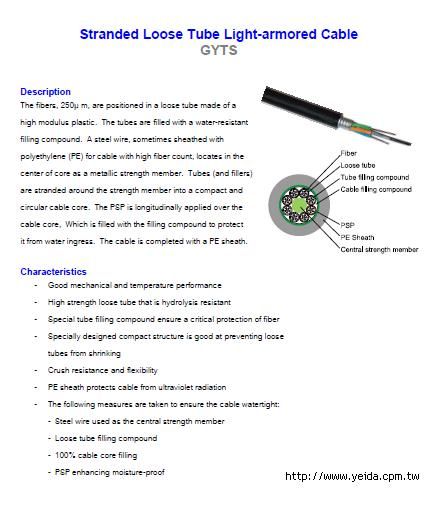

    Stranded Loose Tube Light-armored Cable
    GYTS


    Description
    The fibers, 250μ m, are positioned in a loose tube made of a
    high modulus plastic. The tubes are filled with a water-resistant
    filling compound. A steel wire, sometimes sheathed with
    polyethylene (PE) for cable with high fiber count, locates in the
    center of core as a metallic strength member. Tubes (and fillers)
    are stranded around the strength member into a compact and
    circular cable core. The PSP is longitudinally applied over the
    cable core, Which is filled with the filling compound to protect
    it from water ingress. The cable is completed with a PE sheath.
    　

    Characteristics
    - Good mechanical and temperature performance
    - High strength loose tube that is hydrolysis resistant
    - Special tube filling compound ensure a critical protection of fiber
    - Specially designed compact structure is good at preventing loose
    tubes from shrinking
    - Crush resistance and flexibility
    - PE sheath protects cable from ultraviolet radiation
    - The following measures are taken to ensure the cable watertight:
    - Steel wire used as the central strength member
    - Loose tube filling compound
    - 100% cable core filling
    - PSP enhancing moisture-proof
