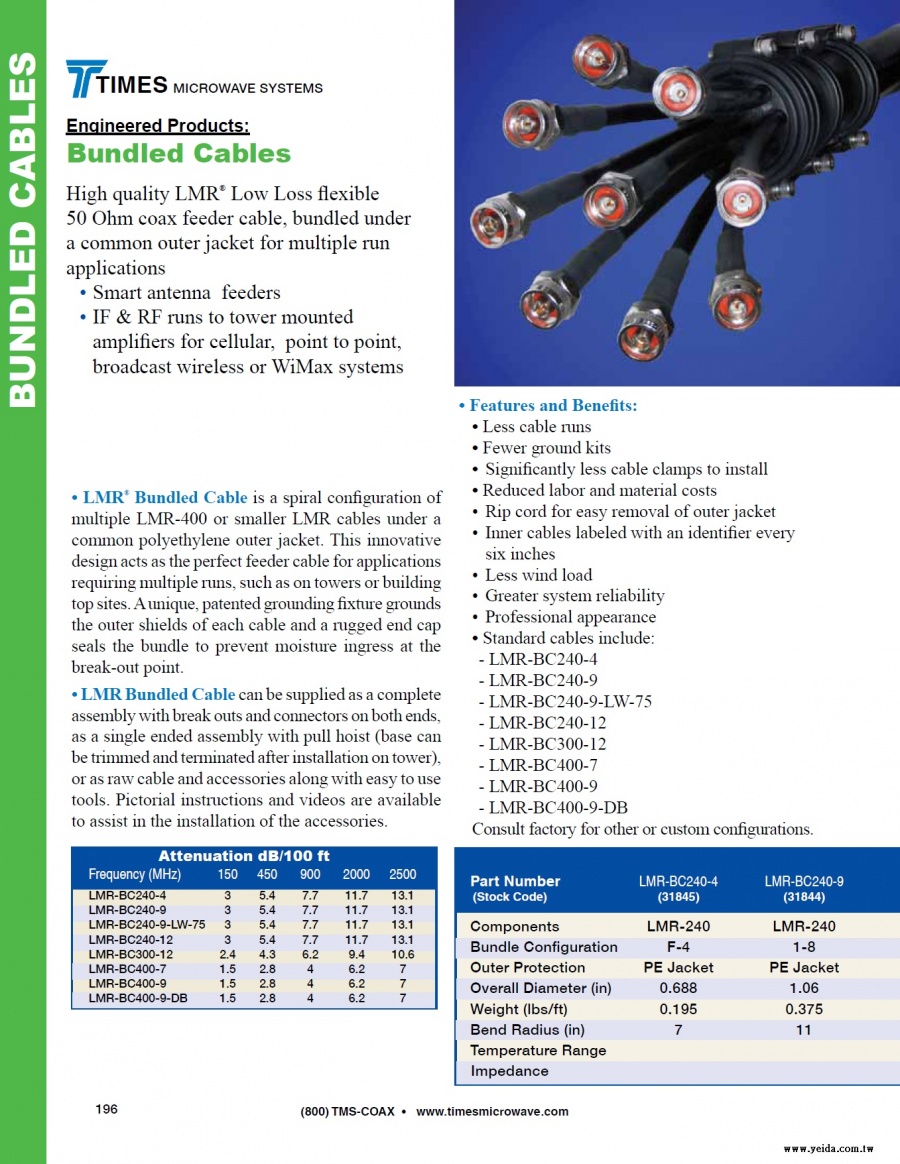

Bundled Cables
Engineered Products:
High quality LMR® Low Loss flexible
50 Ohm coax feeder cable, bundled under
a common outer jacket for multiple run
　

applications
• Smart antenna feeders
• IF & RF runs to tower mounted
amplifiers for cellular, point to point,
broadcast wireless or WiMax systems
　

• LMR® Bundled Cable is a spiral configuration of
multiple LMR-400 or smaller LMR cables under a
common polyethylene outer jacket. This innovative
design acts as the perfect feeder cable for applications
requiring multiple runs, such as on towers or building
top sites. A unique, patented grounding fixture grounds
the outer shields of each cable and a rugged end cap
seals the bundle to prevent moisture ingress at the
break-out point.
• LMR Bundled Cable can be supplied as a complete
assembly with break outs and connectors on both ends,
as a single ended assembly with pull hoist (base can
be trimmed and terminated after installation on tower),
or as raw cable and accessories along with easy to use
tools. Pictorial instructions and videos are available
to assist in the installation of the accessories.
　

• Features and Benefits:
• Less cable runs
• Fewer ground kits
• Significantly less cable clamps to install
• Reduced labor and material costs
• Rip cord for easy removal of outer jacket
• Inner cables labeled with an identifier every
six inches
• Less wind load
• Greater system reliability
• Professional appearance
　

• Standard cables include:
- LMR-BC240-4
- LMR-BC240-9
- LMR-BC240-9-LW-75
- LMR-BC240-12
- LMR-BC300-12
- LMR-BC400-7
- LMR-BC400-9
- LMR-BC400-9-DB
Consult factory for other or custom configurations.
