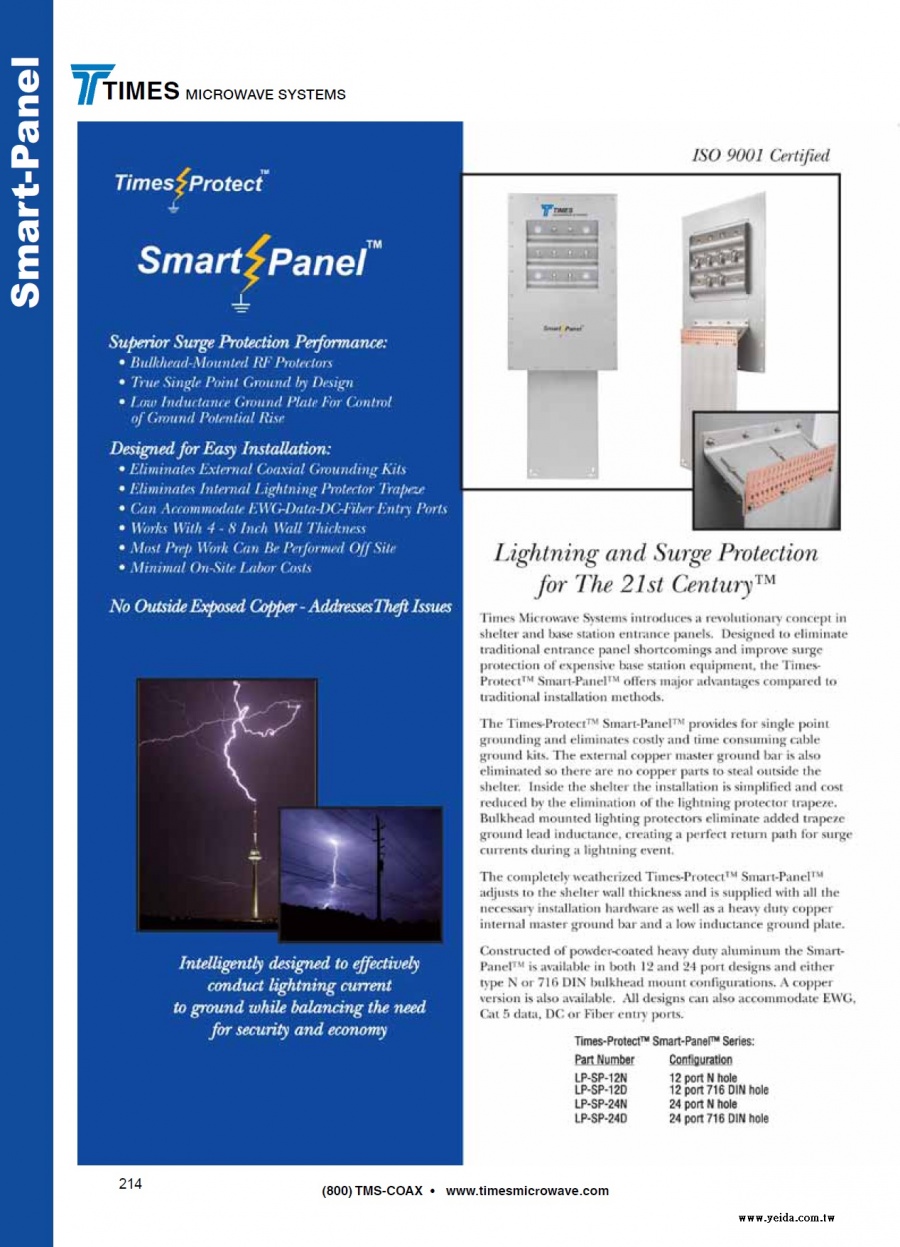

Times Protect

Smart Panel

Superior Surge Protection Performance:
• Bulkhead-Mounted RF Protectors
• True Single Point Ground by Design
• Low Inductance Ground Plate For Control
of Ground Potential Rise

Designed for Easy Installation:
• Eliminates External Coaxial Grounding Kits
• Eliminates Internal Lightning Protector Trapeze
• Can Accommodate EWG-Data-DC-Fiber Entry Ports
• 12 & 24 Port Panels Work With 4 to 8 Inch
Wall Thickness; 6 Port Panels Up to 4-1/2 Inch
Wall Thickness
• Most Prep Work Can Be Performed Off Site
• Minimal On-Site Labor Costs
　

No Outside Exposed Copper - AddressesTheft Issues

Lightning and Surge Protection
for The 21st Century™
Intelligently designed to effectively
conduct lightning current
to ground while balancing the need
for security and economy
Times Microwave Systems introduces a revolutionary concept in
shelter and base station entrance panels. Designed to eliminate
traditional entrance panel shortcomings and improve surge
protection of expensive base station equipment, the Times-
Protect® Smart-Panel® offers major advantages compared to traditional
installation methods.
　

The Times-Protect® Smart-Panel® provides for single point
grounding and eliminates costly and time consuming cable
ground kits. The external copper master ground bar is also
eliminated so there are no copper parts to steal outside the
shelter. Inside the shelter the installation is simplified and cost
reduced by the elimination of the lightning protector trapeze.
Bulkhead mounted lighting protectors eliminate added trapeze
ground lead inductance, creating a perfect return path for surge
currents during a lightning event.
　

The completely weatherized Times-Protect® Smart-Panel®
adjusts to the shelter wall thickness and is supplied with all the
necessary installation hardware as well as a heavy duty copper
internal master ground bar and a low inductance ground plate.
Constructed of powder-coated heavy duty aluminum the Smart-
Panel® is available in 6, 12 and 24 port designs and either type N
or 716 DIN bulkhead mount configurations. A copper version is
also available. All designs can also accommodate EWG, Cat 5
data, DC or Fiber entry ports.
