3M™ Round Conductor Flat Cable, 3667 Series .050" 28 AWG Stranded, PVC, Split & Bonded

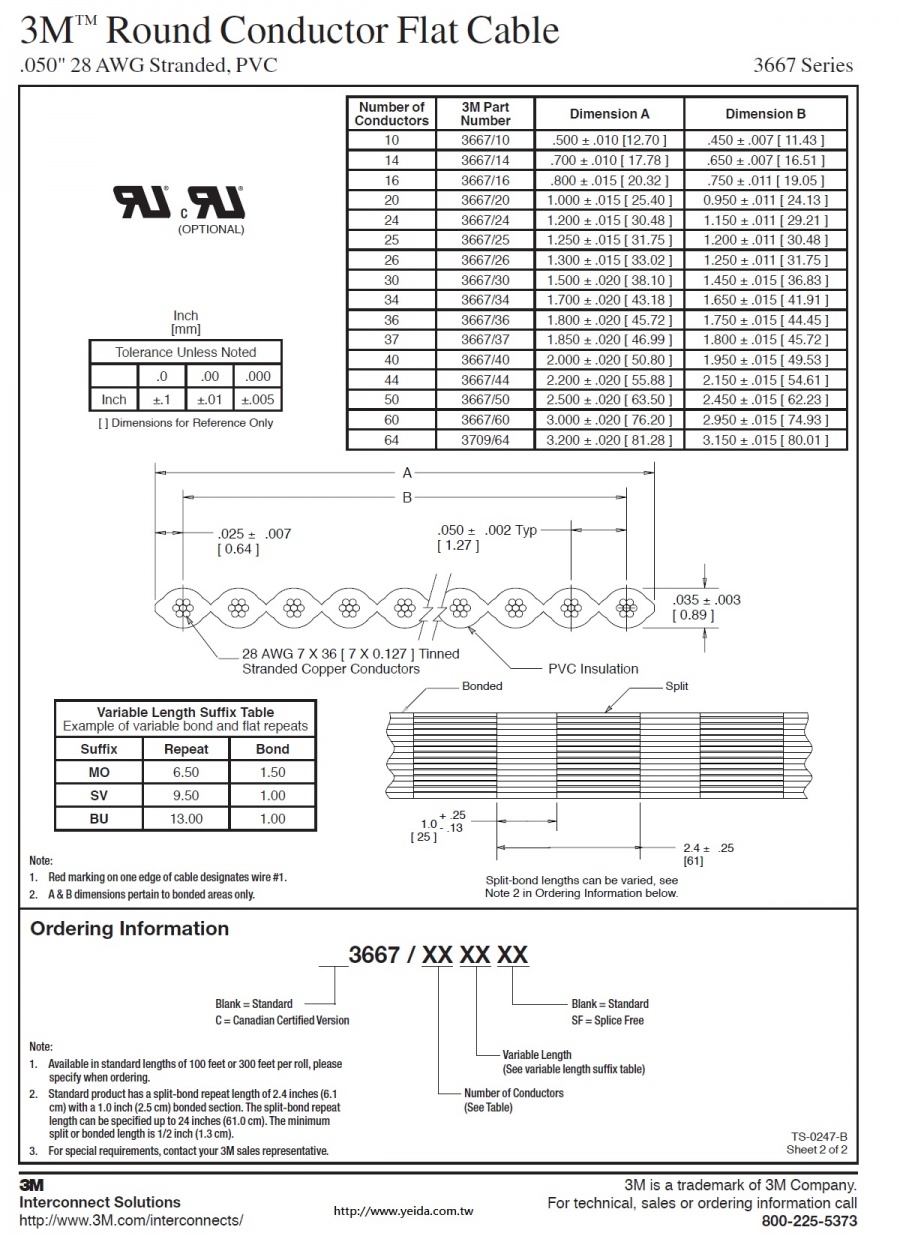

3M™ Round Conductor Flat Cable
.050" 28 AWG Stranded, PVC 3667 Series
• Combines the routing ease of discrete wire round
cable with the mass termination capabilities of a
ribbon cable
• Split conductor sections allow for easy routing
• One inch bonded cable sections of 28 AWG wire on
.050 inch centers permit termination to our broad line
of IDC connectors
• Zippable for branching or discrete termination
• Split-bond lengths can be varied, see Note 2 in
Ordering Information
• See Regulatory Information Appendix (RIA) for
chemical compliance information
(RIA E1 & C1 apply)
Physical
Insulation:
Material: Polyvinyl Chloride (PVC)
Color: Gray
Marking:
Standard: None
Canadian Option: AWM 2651 105C 300V VW1 3M NU C AWM IA 105C 300V FT1 EU < 50V
Conductors: 28 AWG, 7 × 36[ 7 × 0.127 ] Tinned Stranded Copper
Electrical
Voltage Rating: USA: 300V Canada: 300V EU: < 50V
Insulation Resistance: > 1 × 1010 Ω/10 ft. [ 3 m ]
Characteristic Impedance: Unbalanced: 112 Ω
Capacitance: Unbalanced: 12.7 pF/ft [ 41.5 pF/m ]
Inductance: Unbalanced: 0.16 μH/ft [ 0.52 μH/m ]
Propagation Delay: Unbalanced: 1.42 ns/ft [ 4.66 ns/m ]
Velocity of Propagation: Unbalanced: 72%
Note: Unbalanced is measured between ground-signal-ground conductors.
Environmental
Temperature Rating: -20°C to +105°C
Flammability Rating: USA: VW-1 Canada: FT1
UL File No.: E42769, Style No: 2651
|
|
|
