商品編號: 3M-3801
3M™ Round Conductor Flat Cable, 3801 Series .050" 26 AWG Stranded, PVC (9C to 64C) 排線

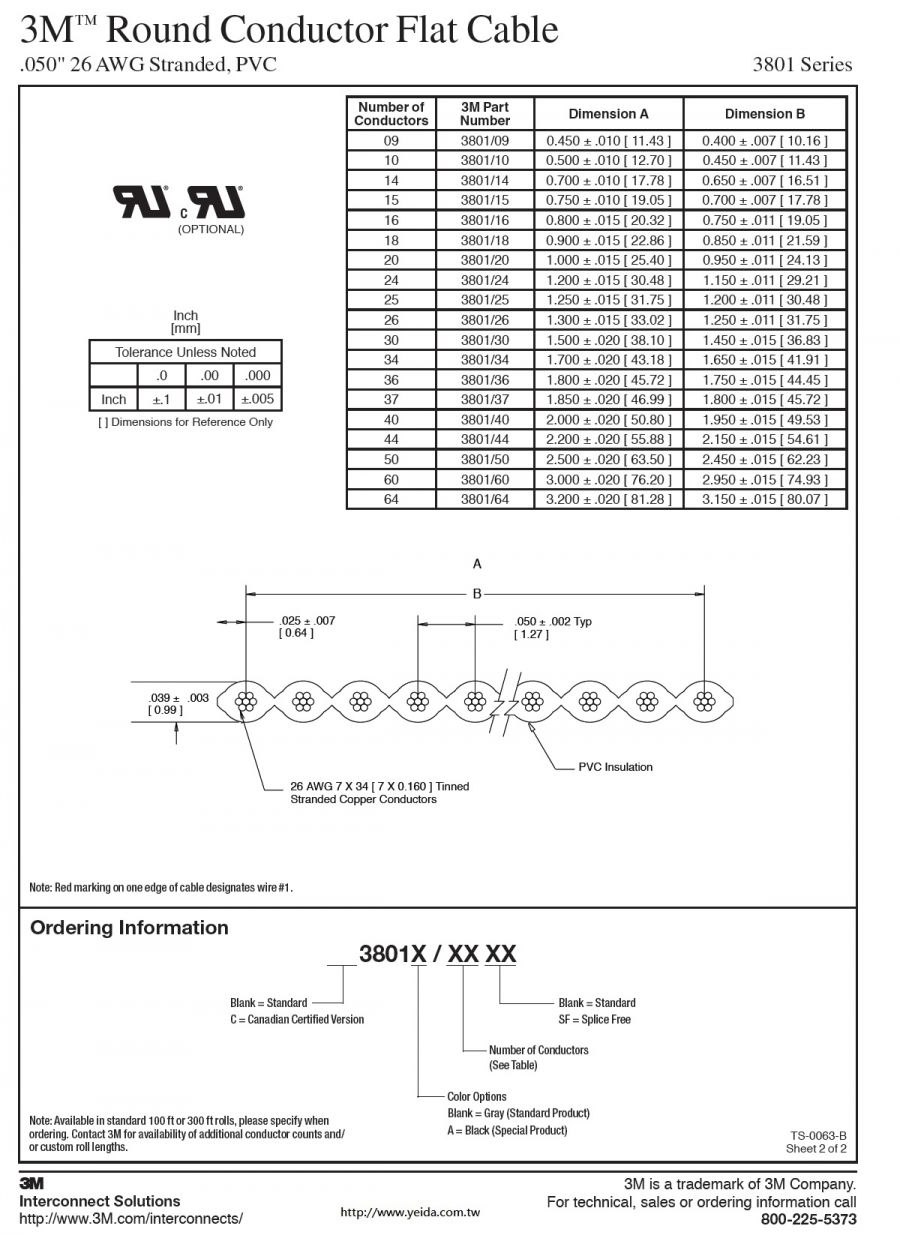

3M™ Round Conductor Flat Cable
.050" 26 AWG Stranded, PVC 3801 Series
• 26 AWG wire allows for higher power levels
• Stranded wire provides flexibility and extended
product life
• .050 inch centers permit mass termination to a broad
line of IDC connectors
• Zippable for branching or discrete termination
• Available in Gray and Black
• See Regulatory Information Appendix (RIA) for
chemical compliance information
(RIA E1 & C1 apply)
Physical
Insulation:
Material: Polyvinyl Chloride (PVC)
Color: Gray Standard, Black (See ordering information)
Marking:
Standard: None
Canadian Option: AWM 2651 105C 300V VW1 3M NU C AWM IA 105C 300V FT1 EU < 50V
Conductors: 26 AWG, 7 × 34[ 7 × 0.160 ] Tinned Stranded Copper
Electrical
Voltage Rating: USA: 300V Canada: 300V EU: < 50V
Insulation Resistance: > 1 × 1010 Ω/10 ft. [ 3 m ]
Characteristic Impedance: Unbalanced: 89 Ω
Capacitance: Unbalanced: 16.2 pF/ft [ 53.1 pF/m ]
Inductance: Unbalanced: 0.13 μH/ft [ 0.43 μH/m ]
Propagation Delay: Unbalanced: 1.44 ns/ft [ 4.72 ns/m ]
Velocity of Propagation: Unbalanced: 71%
Note: Unbalanced is measured between ground-signal-ground conductors.
Environmental
Temperature Rating: -20°C to +105°C
Flammability Rating: USA: VW-1 Canada: FT1
UL File No.: E42769, Style No: 2651
|
|
|
