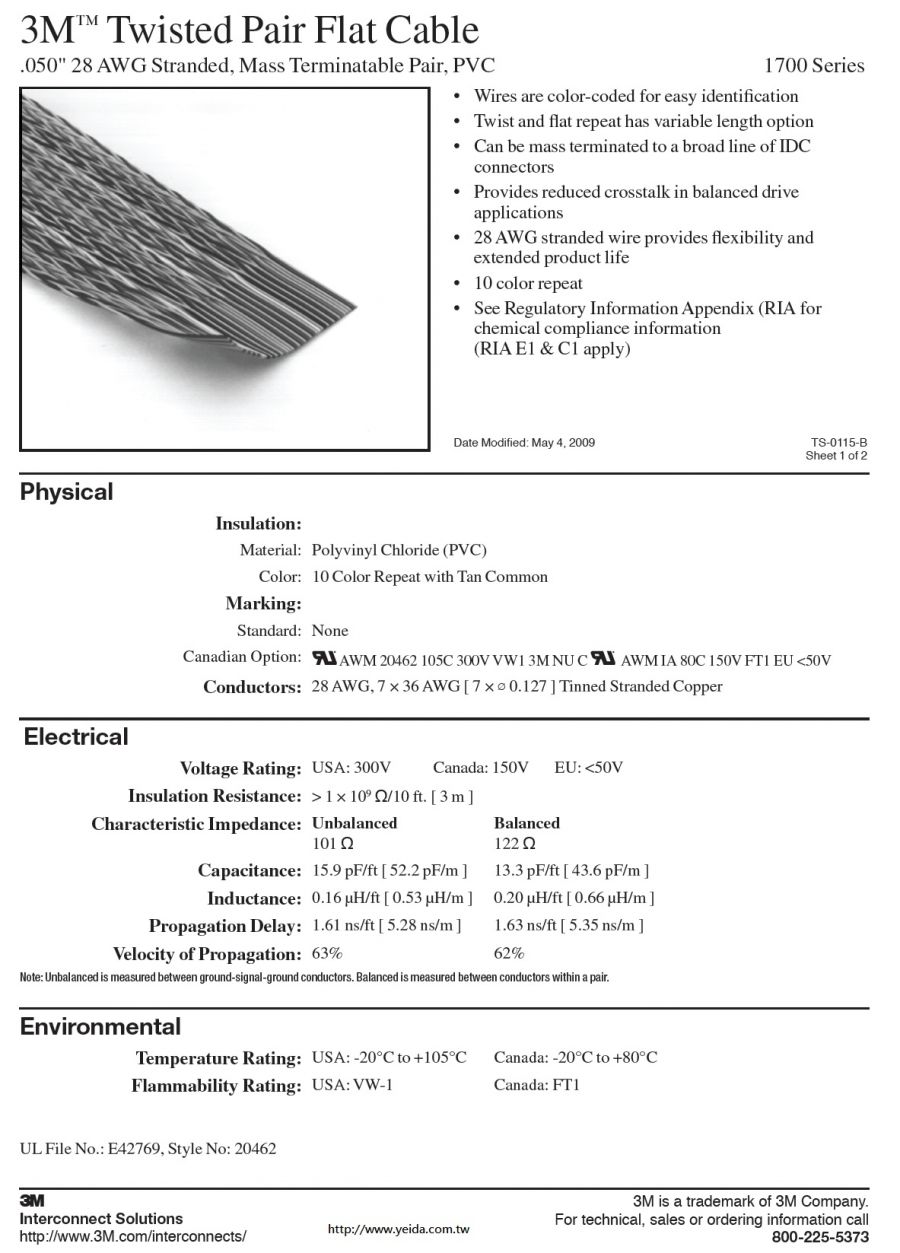

3M™ Twisted Pair Flat Cable
.050" 28 AWG Stranded, Mass Terminatable Pair, PVC 1700 Series
• Wires are color-coded for easy identification
• Twist and flat repeat has variable length option
• Can be mass terminated to a broad line of IDC connectors
• Provides reduced crosstalk in balanced drive applications
• 28 AWG stranded wire provides flexibility and
     extended product life
• 10 color repeat
• See Regulatory Information Appendix (RIA for
     chemical compliance information
     (RIA E1 & C1 apply)

Physical
Insulation: Material: Polyvinyl Chloride (PVC)
Color: 10 Color Repeat with Tan Common
Marking:
Standard: None
Canadian Option: AWM 20462 105C 300V VW1 3M NU C AWM IA 80C 150V FT1 EU <50V
Conductors: 28 AWG, 7 × 36 AWG [ 7 × ⌀ 0.127 ] Tinned Stranded Copper
　

Electrical
Voltage Rating: USA: 300V Canada: 150V EU: < 50V
Insulation Resistance: > 1 × 109 Ω/10 ft. [ 3 m ]
Characteristic Impedance: Unbalanced: 101 Ω , Balanced: 122 Ω
Capacitance: 15.9 pF/ft [ 52.2 pF/m ] 13.3 pF/ft [ 43.6 pF/m ]
Inductance: 0.16 μH/ft [ 0.53 μH/m ] 0.20 μH/ft [ 0.66 μH/m ]
Propagation Delay: 1.61 ns/ft [ 5.28 ns/m ] 1.63 ns/ft [ 5.35 ns/m ]
Velocity of Propagation: 63% 62%
Note: Unbalanced is measured between ground-signal-ground conductors. Balanced is measured between conductors within a pair.
　

Environmental
Temperature Rating: USA: -20°C to +105°C Canada: -20°C to +80°C
Flammability Rating: USA: VW-1 Canada: FT1
UL File No.: E42769, Style No: 20462
