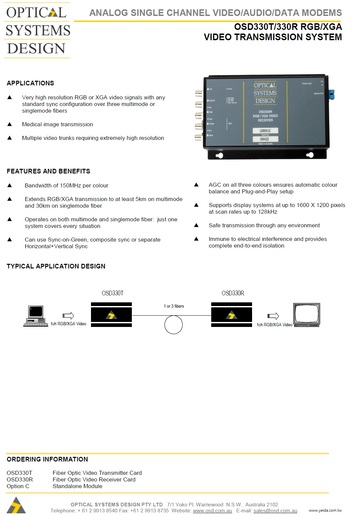

OSD330T/OSD330R, RGB/XGA Video Transmission System 視頻/音頻/數據等訊號光電轉換傳輸接收器
APPLICATIONS
- Very high resolution RGB or XGA video signals with any standard sync configuration over three multimode or singlemode fibers
- Medical image transmission
- Multiple video trunks requiring extremely high resolution
- Large CCTV systems with many tielines or remote cameras
FEATURES & BENEFITS
- 3 video transmitters/card (OSD330T)
- 3 video receivers/card (OSD330R)
- Bandwidth of 150MHz per colour
- Extends RGB/XGA transmission to at least 5km on multimode and 30km on singlemode fiber
- Operates on both multimode and singlemode fiber: just one system covers every situation
- Can use Sync-on-Green, composite sync or separate Horizontal+Vertical Sync
- AGC on all three colours ensures automatic colour balance and Plug-and-Play setup
- Supports display systems at up to 1600 X 1200 pixels at scan rates up to 128kHz
- Safe transmission through any environment
- Immune to electrical interference and provides complete end-to-end isolation
OPTICAL:
Number of fibers 3
Transmitter wavelength 1310 ±40nm
Transmitter coupled power >-10dBm peak power
Receiver sensitivity <-20dBm peak for 50dB weighted SNR
Receiver saturation >-7dBm peak
Optical link budget 10dB (multimode or singlemode)
Optical connectors SC standard, others optional (consult OSD)
