    首頁 > > Analog Single Channel Video/Audio/Data Modems

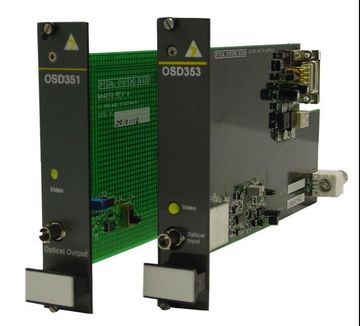

    OSD351/OSD353 Video Modem Cards
    看原圖
    		OSD351-OSD353

    ★★★★商品說明★★★★

    OPTICAL:
    Transmitter Wavelength 850 ±40nm (1310 for OSD351L)
    Transmitter Coupled power >-13dBm peak power into 62.5/125 multimode fiber
    > -17dBm peak power into singlemode fiber (OSD351L only)
    Transmitter Power Adjustment 5dB nominal, user selectable
    Receiver Operating Wavelength 800 to 900nm (OSD353)
    1200 to 1600nm (OSD353L)
    Receiver Sensitivity <-30dBm peak for 50dB SNR
    Optical Link Budget >17dB at 850nm for OSD351/OSD353 (>5km of multimode fiber)
    > 13dB at 1310nm for OSD351L/OSD353L (>30km of singlemode fiber)
    Receiver Saturation >-17dBm peak
    Optical Connectors ST standard
