    首頁 > > Analog Single Channel Video/Audio/Data Modems

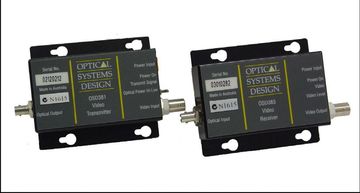

    OSD381/OSD383 Video Transmission Modem Pair
    看原圖
    		OSD381-OSD383

    ★★★★商品說明★★★★

    OPTICAL: Transmitter Wavelength 850 ±40nm (1310nm for OSD381L) Transmitter Coupled Power >-13dBm peak into multimode fiber (OSD381)> -16dBm peak into singlemode fiber (OSD381L) Transmitter Power Adjustment 5dB nominal, user selectable Receiver Operating Wavelength 800 to 900nm (OSD383), 1200 to 1600nm (OSD383L) Receiver Sensitivity <-30dBm peak for 50dB Optical Link Budget >17dB at 850nm (>5km of multimode fiber)> 14dB at 1310nm (>30km of singlemode fiber) Receiver Saturation >-17dBm peak Optical Connectors ST standard
