    首頁 > > Analog Single Channel Video/Audio/Data Modems

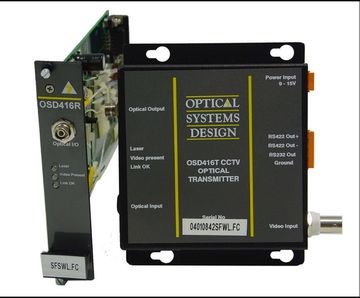

    OSD416T/OSD416R FM Video + Reverse Data Modem Pair
    看原圖
    		OSD416TR

    ★★★★商品說明★★★★

    OPTICAL:
    Transmitter Wavelength 850nm (1310nm for OSD416TL and OSD416RL)
    OSD416T Transmitter Coupled Power >-15dBm into multimode fiber (OSD416T)
    > -13dBm into singlemode fiber (OSD416TL only)
    OSD416R Transmitter Coupled Power >-20dBm into multimode fiber (OSD416R)
    > -20dBm into singlemode fiber (OSD416RL only)
    OSD416R Receiver Saturation >-10dBm
    Receiver Operating Wavelength 800 to 900nm (1270 to 1580nm for OSD416TL and OSD416RL)
    OSD416R Sensitivity <-35dBm for >50dB video SNR
    Transmission Distance >5km for multimode, >40km for singlemode
    OSD416T Received Data Sensitivity <-40dBm for a BER of <1 x 10
    -9
    Optical Connectors ST standard, others optional
