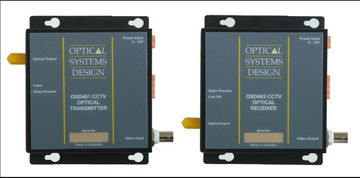

OSD461-OSD463

★★★★商品說明★★★★

OPTICAL
Transmitter wavelength 850 ±40nm (1300nm optional for L version)
Transmitter coupled power >-15dBm into 62.5/125μm multimode fiber
> -15dBm into 9/125μm singlemode fiber (OSD461L version only)
Receiver sensitivity <-35dBm for 55dB SNR
Receiver saturation >-10dBm
Receiver wavelength range 800 to 900nm (1270 to 1580nm for OSD463L)
Optical connectors ST standard
Others optional: consult OSD
