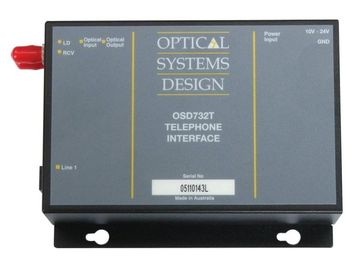

SYSTEM PERFORMANCE
Audio Bandwidth 150Hz to 6kHz
SNR > 70dB
Input/Output Impedance 600 Ohms Balanced
Optical Signal Wavelength 850 or 1300nm nominal
Coupled Transmit Power > -13dBm into 62.5/125 multimode fiber (OSD732)
> -13dBm into 9/125 singlemode fiber (OSD732L)
Receiver Sensitivity < -40dBm
for 1 x 10-9 BER
Receiver Saturation > -10dBm
Ring Voltage 70 VAC on –24 VDC bias
PHYSICAL
Telephone Connector RJ11
Optical Connectors ST standard, others are optional
Operating Temperature Range -20oC to + 75°C
Relative Humidity 0 to 95% non-condensing
Power Requirements +12V to 24V DC @ 500 mA
Indication Rx Optical Signal OK
Laser OK
Dimensions of Module (mm) 104W x 144D x 25H
Weight of Module (kg) 0.4
Dimensions of Card (mm) 25W x 208D x 100H
Weight of Card (kg) 0.2
|
