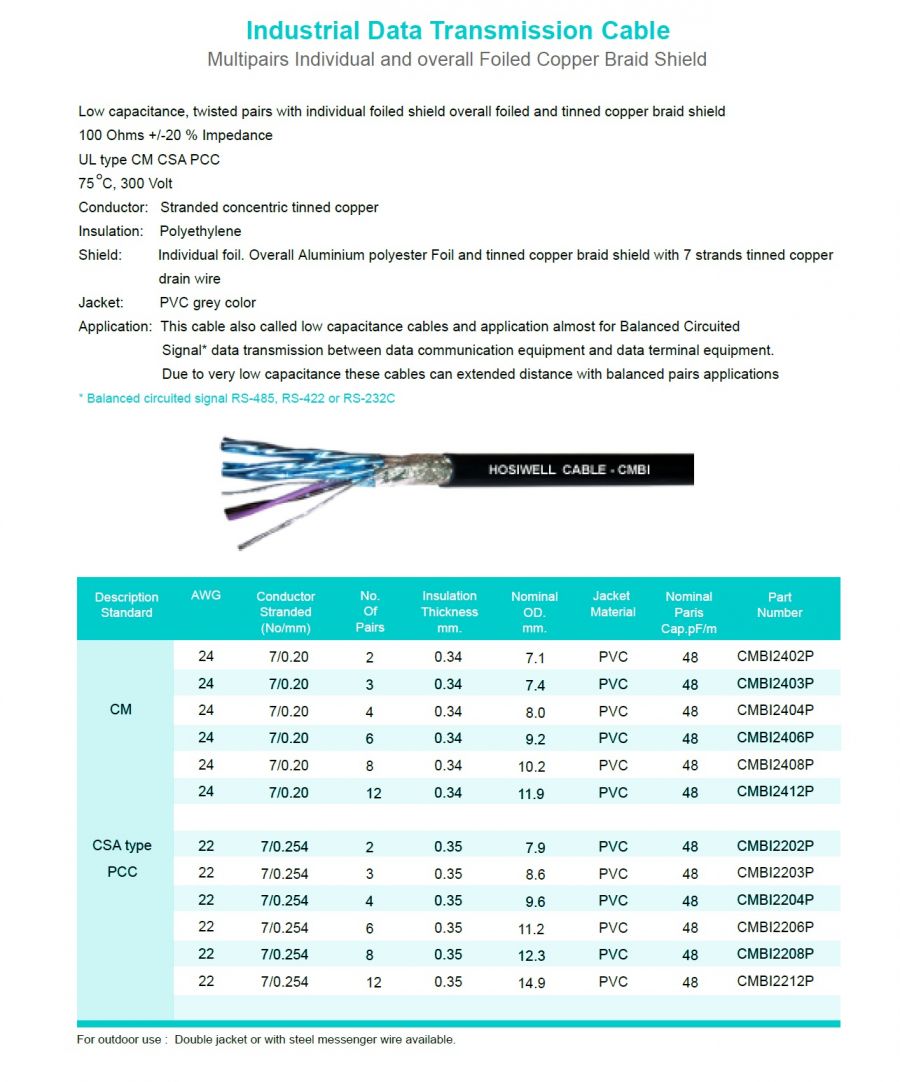

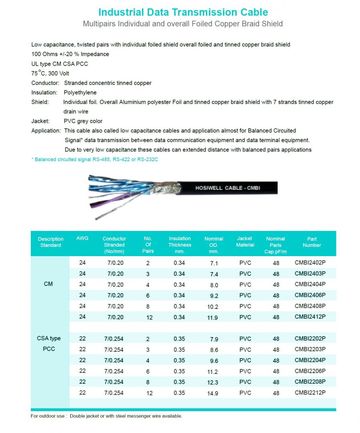

Low capacitance, twisted pairs with individual foiled shield overall foiled and tinned copper braid shield
100 Ohms +/-20 % Impedance
UL type CM CSA PCC
75 °C , 300 Volt
Conductor : Stranded concentric tinned copper
Insulation : Polythylene
Shield : Individual foil. Overall Aluminium polyester Foil and tinned copper braid shield with
7 strand tinned copper drain wire
Jacket : PVC grey color
application : This cable also called low capacitance cables and application almost for
Balance Circuited Signal* data transmission between data communication
equipment and data terminal equipment. Due to very low capacitance
these cables can extended distance with balanced pairs applications
