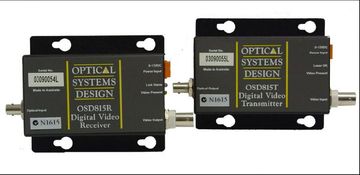

    OSD815T/OSD815R Digital Video Transmission Modem Pair
    看原圖
    		OSD815TR


    ★★★★商品說明★★★★

    OPTICAL:
    Transmitter Wavelength: 850nm (1310nm for OSD815TL)
    OSD815T Transmitter Coupled Power: >-15dBm into multimode fiber
    > -15dBm into singlemode fiber (OSD815TL only)
    OSD815R Receiver Sensitivity: <-29dBm
    OSD815R Receiver Saturation: >-3dBm
    Link Distances: >2km multimode for standard 850nm OSD815 link
    (fiber bandwidth limited)
    > 3km multimode for optional 1310nm OSD815L link
    (fiber bandwidth limited)
    > 30km singlemode for optional 1310nm OSD815L link
    (fiber loss limited)
    Optical Connectors: ST standard, others optional
