    首頁 > > Digital Single Channel Video/Audio/Data Modems

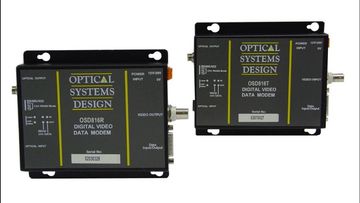

    OSD8816T/OSD816R Digital Video + Data Modem Pair
    看原圖
    		OSD816TR

    ★★★★商品說明★★★★

    OPTICAL
    Transmitter Wavelength 850nm (1310nm for OSD816TL or OSD816RL version)
    OSD816T Transmitter Coupled Power >-15dBm into multimode fiber
    > -15dBm into singlemode fiber (OSD816TL version only)
    OSD816R Transmitter Coupled Power >-20dBm into multimode fiber
    > -20dBm into singlemode fiber (OSD816RL version only)
    OSD816R Receiver Sensitivity <-29dBm
    OSD816R Receiver Saturation >-3dBm
    OSD816T Sensitivity <-40dBm
    OSD816T Receiver Saturation >-10dBm
    Link Distances >2km multimode for standard 850nm OSD816 link
    (fiber bandwidth limited)
    > 3km multimode for optional 1310nm OSD816L link
    (fiber bandwidth limited)
    > 30km singlemode for optional 1310nm OSD816L link
    (fiber loss limited)
    Optical Connectors ST standard, others optional
