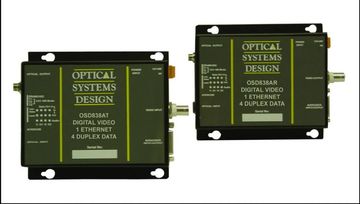

    OSD838 Digital Video, Ethernet and Data Transmission System
    看原圖
    		OSD838TR

    ★★★★商品說明★★★★

    OPTICAL:
    Transmitter Wavelength 850nm (1310nm for OSD838TL or OSD838RL options)
    OSD838T Transmitter Coupled Power >-15dBm into multimode fiber
    > -15dBm into singlemode fiber (OSD838TL version only)
    OSD838R Transmitter Coupled Power >-20dBm into multimode fiber
    > -20dBm into singlemode fiber (OSD838RL version only)
    OSD838R Receiver Sensitivity <-29dBm
    OSD838R Receiver Saturation >-3dBm
    OSD838T Sensitivity <-40dBm
    OSD838T Receiver Saturation >-10dBm
    Link Distances >2km multimode for standard 850nm OSD838 link
    (fiber bandwidth limited)
    > 3km multimode for optional 1310nm OSD838L link
    (fiber bandwidth limited)
    > 30km singlemode for optional 1310nm OSD838L link
    (fiber loss limited)
    Optical Connectors ST standard, others optional
