    首頁 > > Digital Single Channel Video/Audio/Data Modems

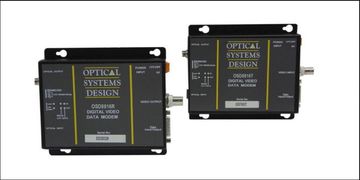

    OSD8816T/OSD8816R Digital Video + Data Modem Pair
    看原圖
    		OSD8816TR

    ★★★★商品說明★★★★

    OPTICAL:
    Number of fibers required One only
    OSD8816T Transmitter Wavelength 1310nm
    OSD8816T Transmitter Coupled Power >-15dBm
    OSD8816R Transmitter Wavelength 850nm (OSD8816R) or 1550nm (OSD8816RL)
    OSD8816R Transmitter Coupled Power >-20dBm
    OSD8816R Receiver Sensitivity <-27dBm
    OSD8816R Receiver Saturation >-3dBm
    OSD8816T Sensitivity <-38dBm
    OSD8816T Receiver Saturation >-10dBm
    Link Distances >3km multimode for standard OSD8816 link
    (fiber bandwidth limited)
    > 30km singlemode for standard OSD8816L link
    (fiber loss limited)
    Optical Connectors ST standard, others optional
