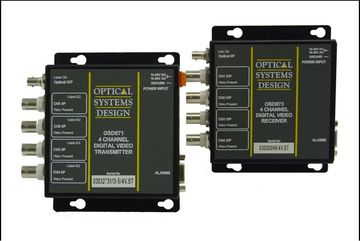

OSD870 Digital 4 Channel Videl Multiplexer 光電轉換器

OSD870

★★★★商品說明★★★★

OPTICAL
Transmitter Wavelength 1310nm or 1550nm
Transmitter Coupled Power several options are available between –7 to +3dBm
Receiver Sensitivity <-24dBm (PIN)
< -34dBm (APD)
Receiver Saturation >0dBm (PIN)
> -5dBm (APD)
Link Budget From 17dB to 37dB at 1310nm or 1550nm
Operating Distance Up to 200km, depending on optical devices used
Optical Connectors ST standard, FC is optional
Optical Line Rate 1.35Gbps
