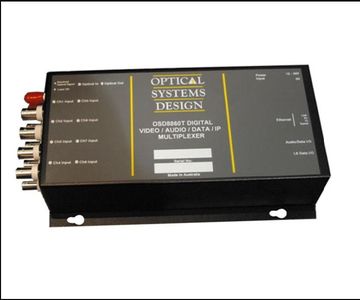

OSD8860 Digital Add/Drop Video/Data/Ethernet Multiplexer 光電轉換器

OSD8860

★★★★商品說明★★★★

OPTICAL
Number and type of fibers One singlemode fiber
OSD8600T Transmitter wavelength 1310nm or 1550nm
OSD8600T Transmitter coupled power –7dBm
OSD8600T Reverse Path Sensitivity <-32dBm
OSD8600R Transmitter wavelength 1550nm
OSD8600R Transmitter coupled power –13dBm
OSD8600R Receiver Sensitivity <-22dBm (PIN)
< -29dBm (APD)
Link budget >15dB at 1310nm or 1550nm
Link Distance >30km for standard devices
Optical Connector ST standard, SC is optional
