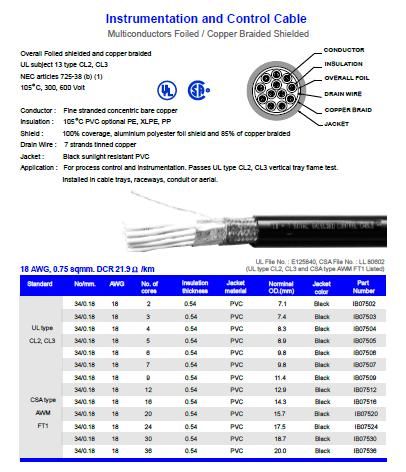

    Hosiwell-IB075XX 18 AWG, 0.75 sqmm. DCR 21.9 ohm/km UL 105度 鋁箔銅網電腦儀表控制隔離線
    看原圖
    HOSIWELL-IB075XX


    商品編號: Hosiwell-IB075XX

    Hosiwell-IB075XX 18 AWG, 0.75 sqmm. DCR 21.9 ohm/km UL 105度 鋁箔銅網電腦儀表控制隔離線


    Product Description




    Bare copper conductor .
    Color or number coded PVC , PE , PP insulation available .
    Shield with aluminum - mylar tape 100% coverage .
    Bare copper braid shield 90% coverage.
    Tinned copper drain wire (22AWG , 7/0.26) .
    Weatherproof and sunlight resistance PVC jacket .
    Anti-ant and mouse destroy PVC jacket available .
    Rated temp. 105°C (PVC) 75°C (PP,PE) , rated voltage 600V.
    UL File No.: E125840 , CSA File No.: LL80602 .
    ( UL type CL2 , CL3 and CSA type AWM FT1 Listed )

    Overall Foiled shielded and copper braided
    UL subject 13 type CL2, CL3
    NEC articles 725-38 (b) (1)
    105 C, 300, 600 Volt


    Conductor : Fine stranded concentric bare copper
    Insulation : 105 C PVC optional PE, XLPE, PP
    Shield : 100% coverage, aluminium polyester foil shield and 85% of copper braided
    Drain Wire : 7 strands tinned copper
    Jacket : Black sunlight resistant PVC
    Application : For process control and instrumentation. Passes UL type CL2, CL3 vertical tray flame test.
    Installed in cable trays, raceways, conduit or aerial.
