Belden 88760 18 AWG x 1P stranded TC plenum, FEP jacket.150°C 2芯鐵氟龍耐高溫声音音響, 通訊, 儀表控制電纜

BELDEN-88760

Belden 88760 18 AWG x 1P stranded TC plenum, FEP jacket.150°C 2芯鐵氟龍耐高溫声音音響, 通訊, 儀表控制電纜

Print Preview

Show Metric

88760

Multi-Conductor - Single-Pair Cable

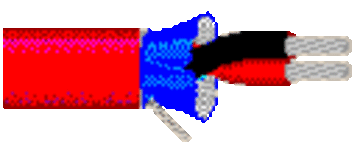

18 AWG stranded (19x30) TC conductors, plenum, FEP insulation, twisted pair, overall Beldfoil® shield (100% coverage), 20 AWG stranded TC drain wire, FEP jacket.

For more Information
Please call

1-800-Belden1

Click here for Certificate

Put Ups and Colors:

Item ##	Putup	Ship Weight	Color	Notes	Item Desc
88760 002U1000	1,000 FT	25.000 LB	RED		2 #18 FEP SH FEP
88760 002U500	500 FT	13.000 LB	RED		2 #18 FEP SH FEP
88760 002100	100 FT	3.800 LB	RED		2 #18 FEP SH FEP
88760 0021000	1,000 FT	24.000 LB	RED	C	2 #18 FEP SH FEP
88760 00210000	10,000 FT	240.000 LB	RED	C Z	2 #18 FEP SH FEP
88760 00220000	20,000 FT	500.000 LB	RED	C Y	2 #18 FEP SH FEP
88760 002500	500 FT	13.000 LB	RED	C	2 #18 FEP SH FEP
88760 0025000	5,000 FT	120.000 LB	RED		2 #18 FEP SH FEP

Notes:
C = CRATE REEL PUT-UP. Y = FINAL PUT-UP LENGTH MAY VARY -10% TO +20% FROM LENGTH SHOWN.MAY CONTAIN 2 PIECES. MINIMUM LENGTH OF ANY ONE PIECE IS 1500'. Z = FINAL PUT-UP LENGTH MAY VARY (+ OR -) 10% FOR SPOOLS OR REELS AND(+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

Physical Characteristics (Overall)

Conductor

AWG:

# Pairs	AWG	Stranding	Conductor Material
1	18	19x30	TC - Tinned Copper

Total Number of Conductors:

Insulation

Insulation Material:

Insulation Material	Wall Thickness (in.)
FEP - Fluorinated Ethylene Propylene	.007

Outer Shield

Outer Shield Material:

Outer Shield Trade Name	Type	Outer Shield Material	Coverage (%)
Beldfoil® (with shorting fold)	Tape	Aluminum Foil-Polyester Tape	100.000

Outer Shield Drain Wire AWG:

AWG	Stranding	Drain Wire Conductor Material
20	Stranded	TC - Tinned Copper

Outer Jacket

Outer Jacket Material:

Outer Jacket Material	Nom. Wall Thickness (in.)
FEP - Fluorinated Ethylene Propylene	0.014

Overall Cable

Overall Nominal Diameter:

0.143 in.

Pair

Pair Color Code Chart:

Number	Color
1	Black & Red

Pair Lay Length & Direction:

Lay Length (in.)	Twists (twist/ft)	Direction
2.000	6.000	Left hand

Mechanical Characteristics (Overall)

Operating Temperature Range:

-70°C To +200°C

Bulk Cable Weight:

23 lbs/1000 ft.

Max. Recommended Pulling Tension:

64 lbs.

Min. Bend Radius/Minor Axis:

1.500 in.

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

NEC/(UL) Specification:

CMP

NEC Articles:

800

CEC/C(UL) Specification:

CMP

EU Directive 2011/65/EU (ROHS II):

Yes

EU CE Mark:

Yes

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

04/01/2005

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Flame Test

UL Flame Test:

NFPA 262

CSA Flame Test:

FT6

Suitability

Suitability - Indoor:

Yes

Suitability - Outdoor:

Yes

Suitability - Burial:

Yes

Sunlight Resistance:

Yes

Oil Resistance:

Yes

Plenum/Non-Plenum

Plenum (Y/N):

Yes

Non-Plenum Number:

8760

Electrical Characteristics (Overall)

Nom. Characteristic Impedance:

Impedance (Ohm)

Nom. Inductance:

Inductance (µH/ft)

.15

Nom. Capacitance Conductor to Conductor:

Capacitance (pF/ft)

Nom. Capacitance Cond. to Other Conductor & Shield:

Capacitance (pF/ft)

Nominal Velocity of Propagation:

VP (%)

Nominal Delay:

Delay (ns/ft)

1.47

Nom. Conductor DC Resistance:

DCR @ 20°C (Ohm/1000 ft)

5.5

Nominal Outer Shield DC Resistance:

DCR @ 20°C (Ohm/1000 ft)

7.3

Max. Operating Voltage - UL:

Voltage

300 V RMS

Max. Recommended Current:

Description	Current
10C temperature rise	5.4 Amps per conductor @ 25°C ambient

Notes (Overall)

Notes:

For use in indoor plenum environments but also suitable for outdoor and underground applications. Gas/vapor-tight jacket.
