Product Description
1. The properties of optical fiber is conformed to the ITU-T , CCITT, IEC, America REA etc. international standard.
2. Single mode (SM) and multi-mode (MM) are chosen.
3. Number of fiber is up to 144 cords.
4. Non-metallic optical fiber cable is not interfered by electromagnetism and electricity.
5. Armoured type is prevented to bite by mouse.
6. Low smoke free halogen (LSFH) sheath Available.
Application
Type |
Application |
GYFSTY |
Apply for thunderbolt and magnetic field, intended for aerial. |
GYSTA |
Moistureproof, suitable installed for duct. |
GYSTS |
Light armoured suitable installed for aerial. |
GYSTY |
Waterproof, impact resistance intended for duct, aerial. |
GYSTAA |
Waterproof, impact resistance intended for direct buried. |
Construction
Type |
GYFSTY |
GYSTA |
GYSTS |
GYSTY |
GYSTAA |
Number of Fiber |
2-144 |
2-144 |
2-144 |
2-144 |
2-144 |
Outer Diameter (mm) |
12-16 |
12.5-20 |
13-20 |
14.6-20 |
16-24 |
Number of Steel x Diameter (mm) |
NO |
1x2.2 1x2.5
Or
7x0.84 7x1 |
1x2.2 1x2.5
Or
7x0.84 7x1 |
1x2.2 1x2.5
Or
7x0.8 4.7x1 |
1x2.2 1x2.5
Or
7x0.8 4.7x1 |
Weight (kg/km) |
120-200 |
180-400 |
220-440 |
280-400 |
300-600 |
Properties
Type |
GYFSTY |
GYSTA |
GYSTS |
GYSTY |
GYSTAA |
Pull Resistance(N) |
≧1500 |
≧1500 |
≧1500 |
≧3000 |
≧3000 |
Impact Resistance (N/100mm) |
≧600 |
≧1000 |
≧1000 |
≧3000 |
≧3000 |
Rush Resistance |
5N.mx5 times |
5N.mx5 times |
5N.mx5 times |
10N.mx10 times |
10N.mx10 times |
Flex Resistance (Dynamic) |
25 times of cable diameter |
25 times of cable diameter |
25 times of cable diameter |
25 times of cable diameter |
25 times of cable diameter |
Operating Temperature |
In -40~+60℃ Wasting △α≦0.1dB/2km |
In -40~+60℃ Wasting △α≦0.1dB/2km |
In -40~+60℃ Wasting △α≦0.1dB/2km |
In -40~+60℃ Wasting △α≦0.1dB/2km |
In -40~+60℃ Wasting △α≦0.1dB/2km |

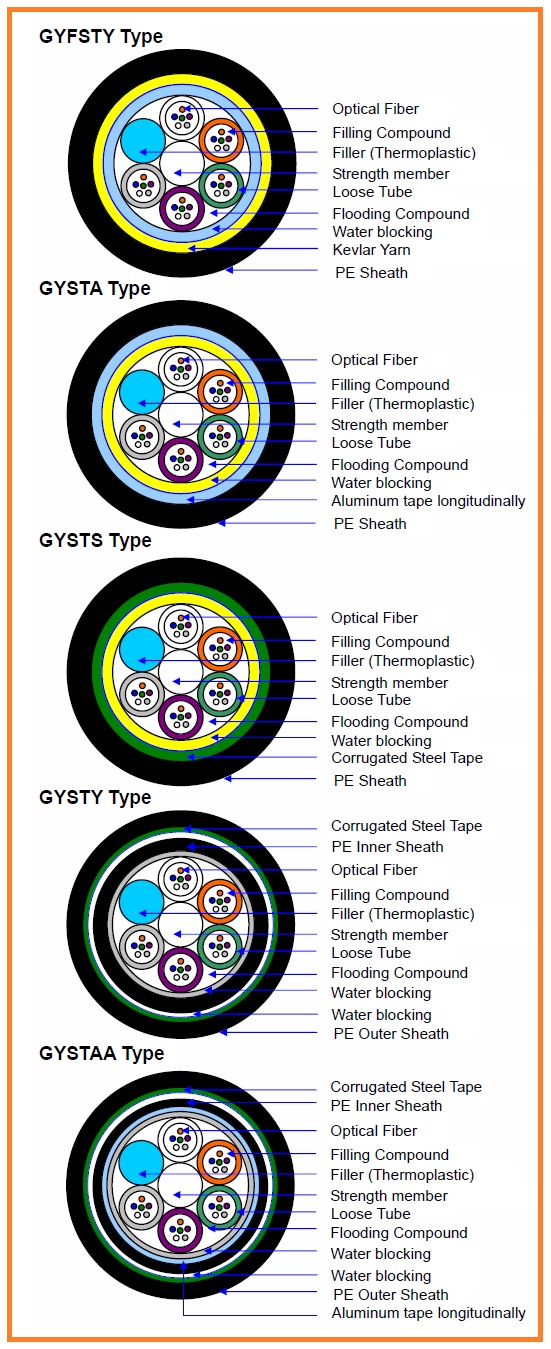

線纜圖檔

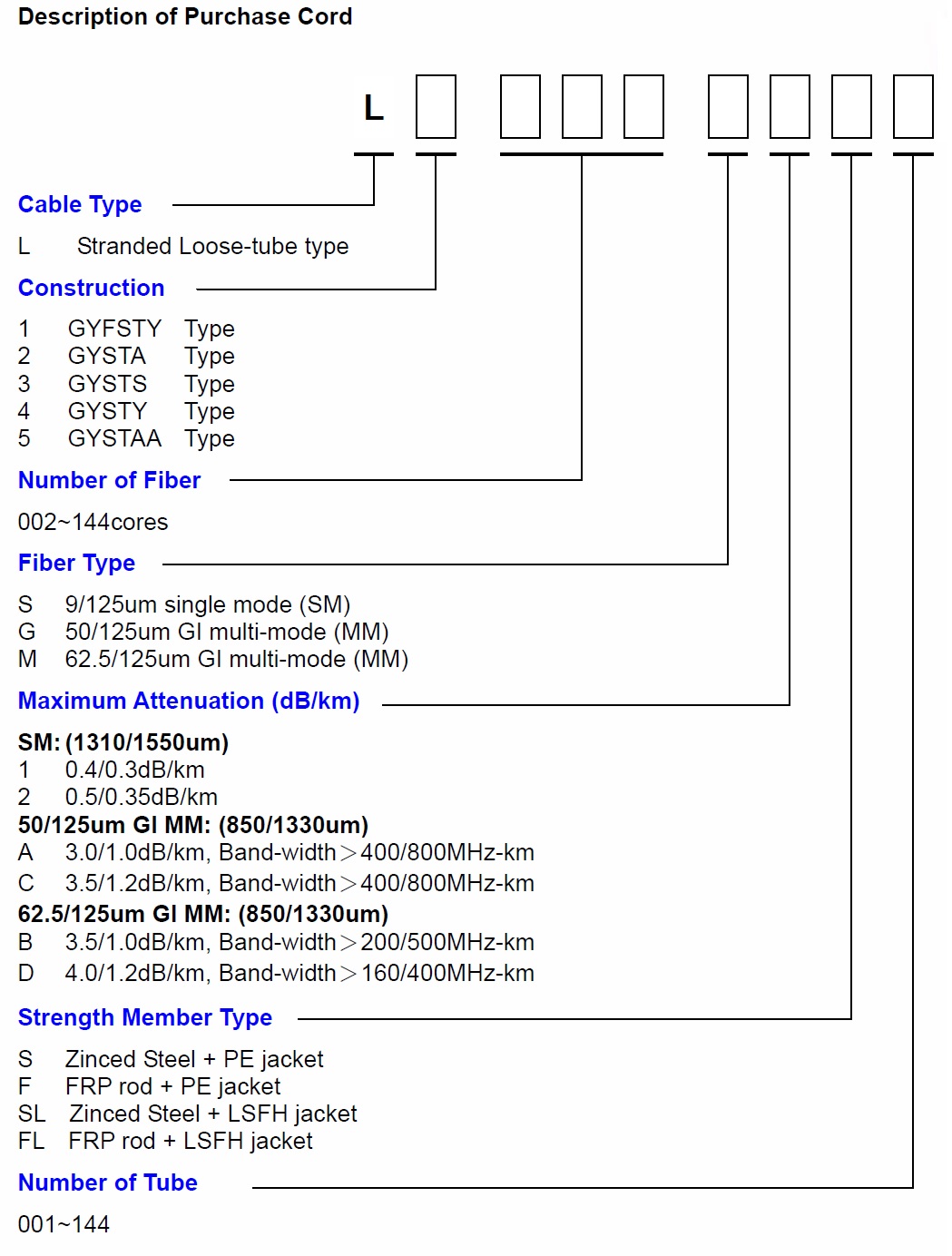

訂貨規範
