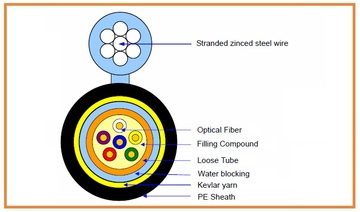

    YD-SST Fiber 自持光纖纜線
    看原圖
    		YD-SST

    SST Fiber 自持光纖纜線
    Product Description
    1. The properties of optical fiber is conformed to the ITU-T , CCITT, IEC, America REA etc. international standard.
    2. Single mode (SM) and multi-mode (MM) are chosen.
    3. Number of fiber is up to 144 cords.
    4. Non-metallic optical fiber cable is not interfered by electromagnetism and electricity.
    5. Armoured type is prevented to bite by mouse.
    6. Low smoke free halogen (LSFH) sheath Available.

    Application
    1. Suitable for subscriber loop, junction, long-haul communication.

    Diameter and Weight
    Construction Number of fiber of each tube Number of tube Diameter(mm) Weight(kg/km)
    Central tube type 2-12 1 9.5x18.3 218
    Standed loose tube type 8-12 2 9.5x18.3 218
    14-18 3 9.5x18.3 218
    20-24 4 9.5x18.3 218
    26-30 5 9.5x18.3 218

    Specification and Properties
    Tensile Strength (Long/Short Term) 600/1500 (N)
    Crush Resistance (Long/Short Term) 300/1000 (N/100m)
    Bending Radius (Static/Dynamic) 10D/20D (mm)
    Attenuation (dB/km) 20℃ ≦3.0 (850nm)
    ≦1.0 (1300nm)
    Bandwidth (Class A) (MHz-km) ≧200 (850nm)
    ≧600 (1300nm)
    Numerical Aperture 0.275±0.015NA
    Operating Temperature -40℃~+70℃

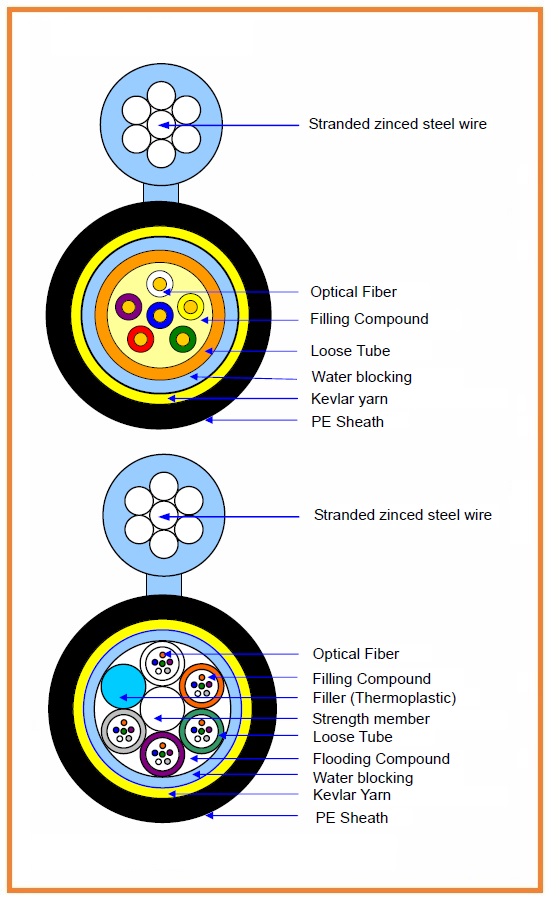

    線纜圖檔

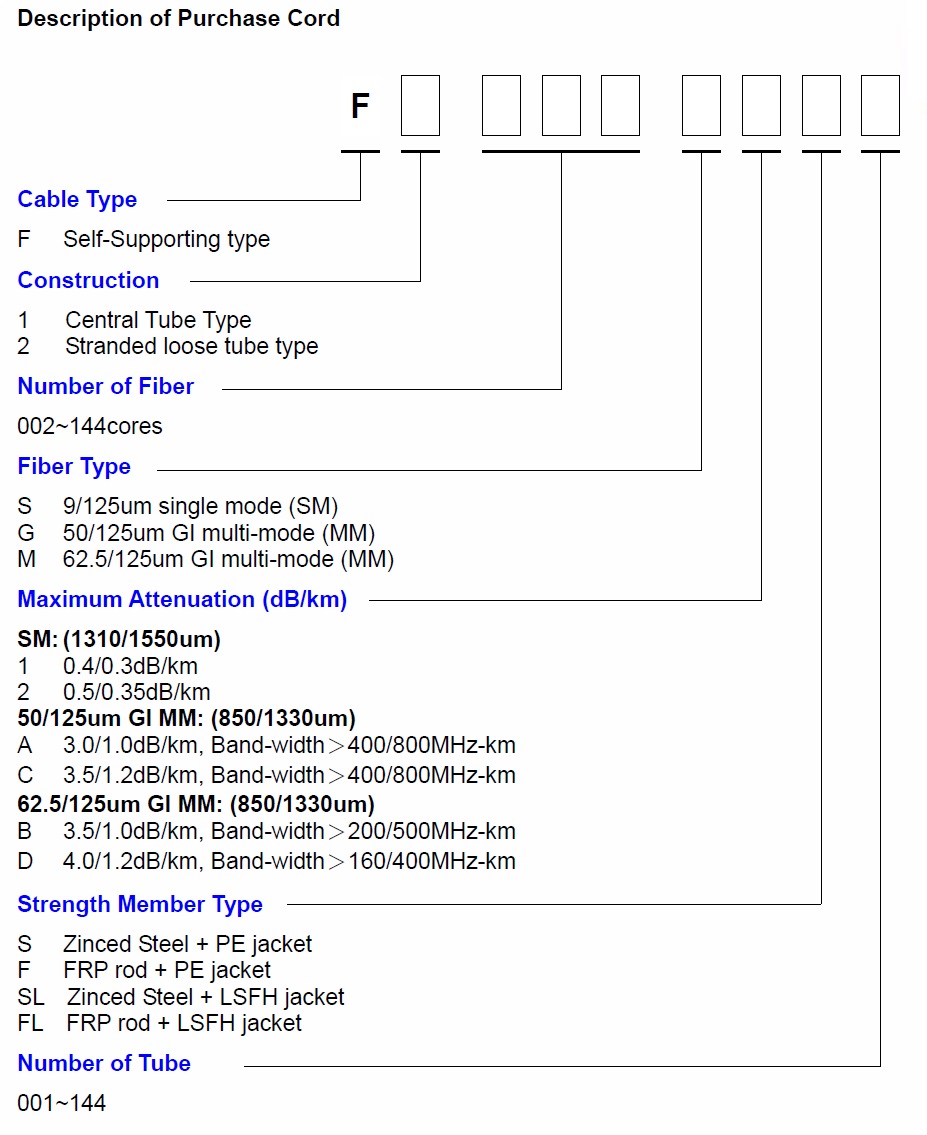

    訂貨規範
