Tight Buffer (Break Out) Type 緊式型光纖纜線
Product Description
1. The properties of optical fibers are complied with YD/T 1258, ICEA-596, GR-409, IEC794, etc.; and meet the requirements of UL approval for OFNR.
2. Single mode (SM) and multi-mode (MM) are chosen.
3. Number of fiber is up to 12 cords.
4. Non-metallic optical fiber cable is not interfered by electromagnetism and electricity.
Application
1. Data communication
2. Making connector
3. installation: riser, plenum, Etc.
4. Places where waterproof is not strictly required.
5. Making jumper, pigtail and building distribution.

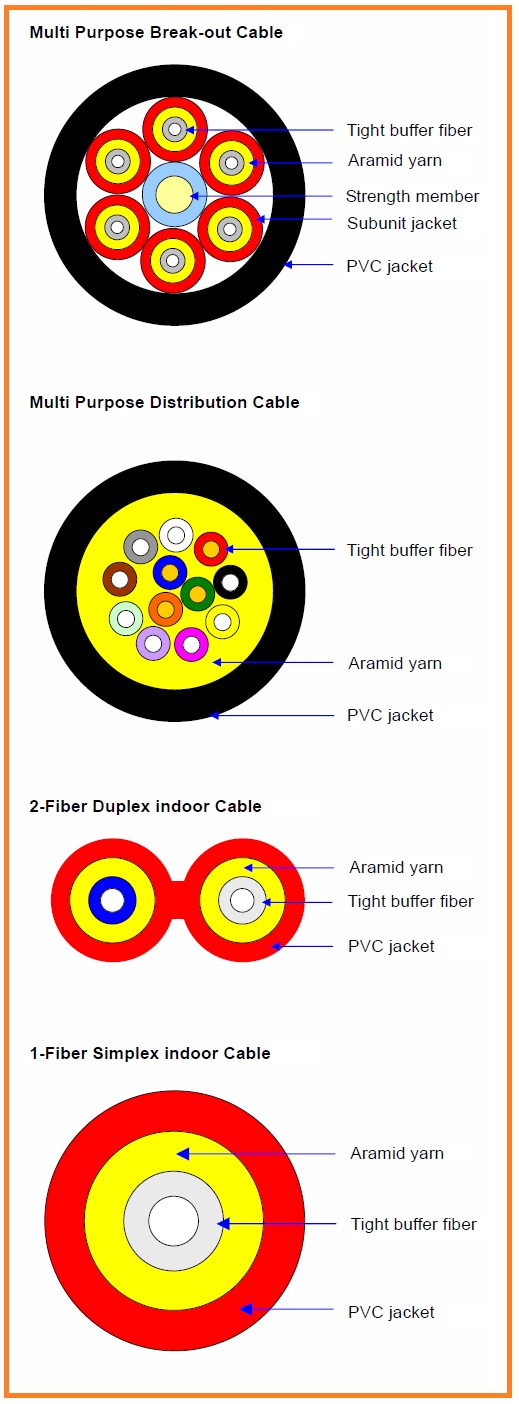

Construction
\ Type
Item \ |

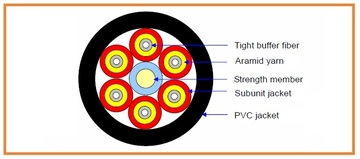

Multi Purpose Break-out Cable |
Multi Purpose Distribution Cable |
Number of Cores |
2 |
4 |
6 |
8 |
10 |
12 |
2 |
4 |
6 |
8 |
10 |
12 |
Cable Diameter (mm) |
7.2 |
7.2 |
8.3 |
9.4 |
10.7 |
12.2 |
4.1 |
4.8 |
5.1 |
5.6 |
5.8 |
6.2 |
Cable Weight (kg/km) |
45 |
45.2 |
62.5 |
85.9 |
109 |
140 |
11 |
18.4 |
22 |
24 |
27 |
31 |
TBF Diameter |
900±50μm |
900±50μm |
\ Type
Item \ |
2-Fiber Duplex Indoor Cable |
1-Fiber Simplex Indoor Cable |
Cable Diameter (mm) |
6.0x2.8 |
4.2x2.0 |
3.4x1.6 |
2.8 |
2.0 |
1.6 |
Cable Weight (kg/km) |
15.6 |
10.5 |
7.3 |
6.9 |
5.9 |
4.0 |
TBF Diameter |
900±50μm |
900±50μm |
600±50μm |
900±50μm |
900±50μm |
600±50μm |
Properties
\ Type
Item \ |
Multi Purpose Break-out Cable |
Multi Purpose Distribution Cable |
2-Fiber Duplex indoor Cable |
1-Fiber Simplex indoor Cable |
Tensile Strength (Long/Short Term) |
200/660 (N) |
200/660 (N) |
100/200 (N) |
80/150 (N) |
Crush Resistance (Long/Short Term) |
300/1000 (N/100m) |
300/1000 (N/100m) |
200/1000 (N/100m) |
100/500 (N/100m) |
Bending Radius (Static/Dynamic) |
10D/20D mm |
10D/20D mm |
10H/20H mm |
10H/20H mm |
Attenuation (dB/km) 20℃ |
≦3.5 (850nm) |
≦3.5 (850nm) |
≦3.5 (850nm) |
≦3.5 (850nm) |
≦1.5 (1300nm) |
≦1.5 (1300nm) |
≦1.5 (1300nm) |
≦1.5 (1300nm) |
Bandwidth (ClassA) (MHz-km) |
≧200 (850nm) |
≧200 (850nm) |
≧200 (850nm) |
≧200 (850nm) |
≧600 (1300nm) |
≧600 (1300nm) |
≧600 (1300nm) |
≧600 (1300nm) |
Numerical Aperture |
0.275±0.015NA |
0.275±0.015NA |
0.275±0.015NA |
0.275±0.015NA |
Operating Temperature |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
-20℃~+60℃ |
線纜圖檔

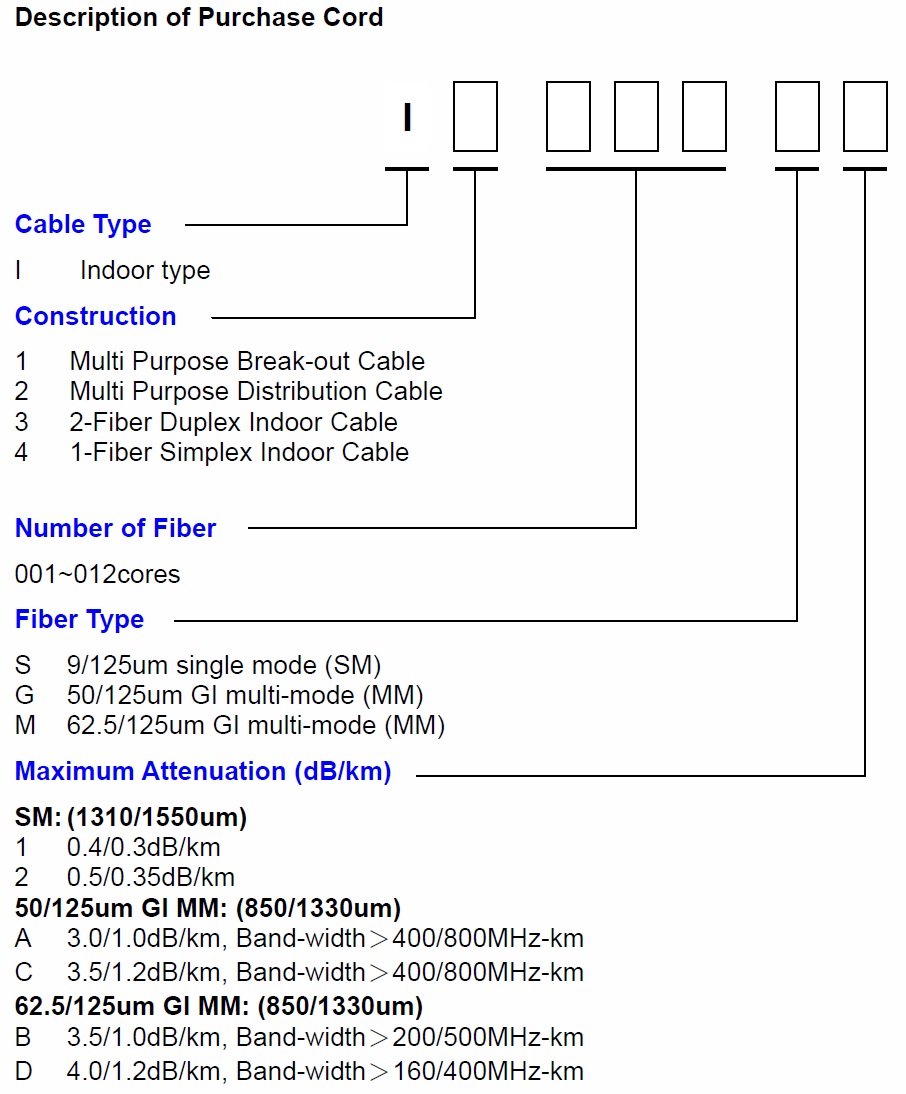

訂貨規範
