    Commscope-1091, SYSTIMAX GigaSPEED X10D Non Plenum Cable CAT-6A 網路配線
    看原圖
    		SYSTIMAX-1091


    商品編號: SYSTIMAX-1091

    Commscope-1091, SYSTIMAX GigaSPEED X10D Non Plenum Cable CAT-6A 網路配線

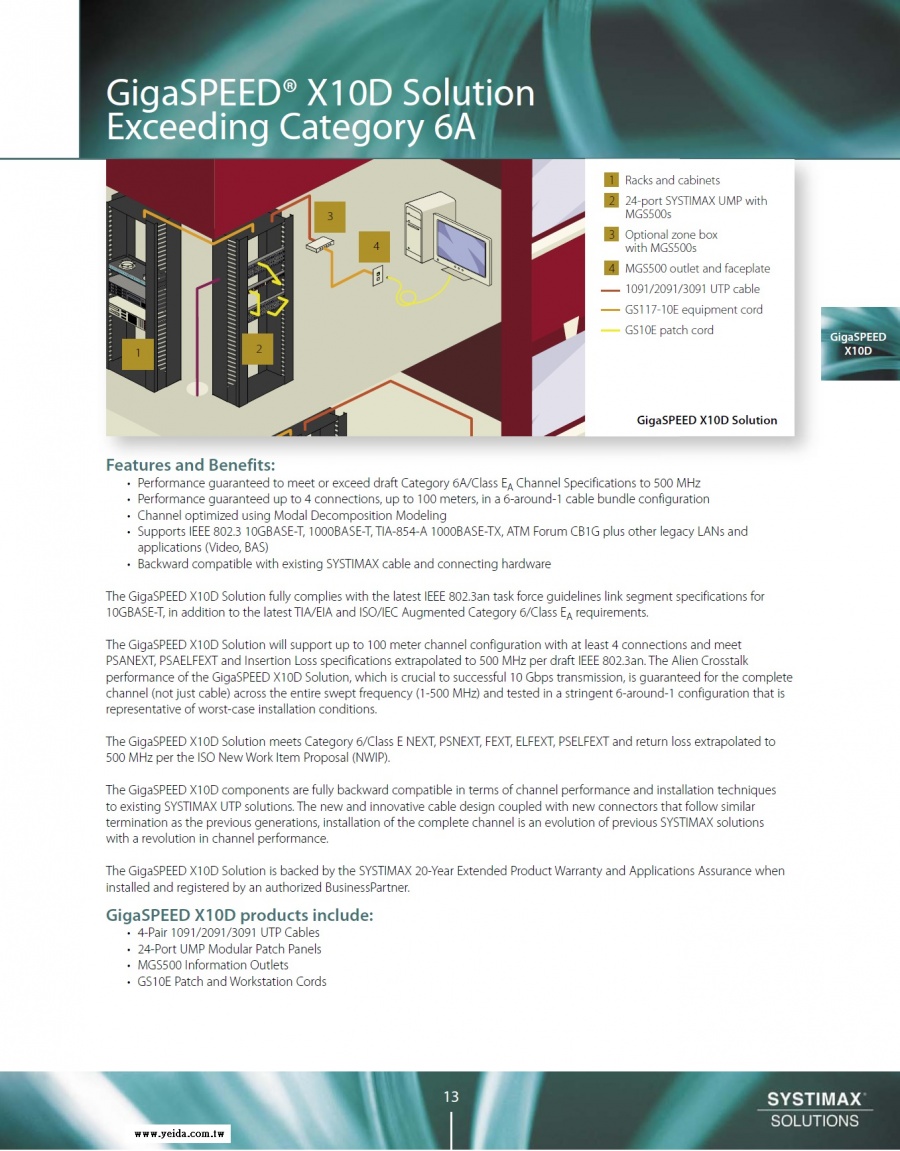

    GigaSPEED X10D products include:
    • 4-Pair 1091/2091/3091 UTP Cables
    • 24-Port UMP Modular Patch Panels
    • MGS500 Information Outlets
    • GS10E Patch and Workstation Cords

    SYSTIMAX SOLUTIONS - GigaSPEED X10D SOLUTION

    保證通道性能

    1. 10Gb/s UTP電纜佈線通道解決方案應專為支援10GBASE-T應用距離達100m設計，還應支援其他最新的多Gbps應用。
    2. 10 Gb/s UTP 解決方案應具備改良的來自外部電纜或連接頭線對的外來串擾Alien NEXT，可在不降低內部通道傳輸性能的情況下降低來自外來的串擾。
    3. UTP 通道應具備高級 Alien NEXT性能、改良的插入損失性能以及保證通道性能達500 MHz。應保證已安裝的最多達4連接頭、長度達100m的UTP通道的Alien NEXT 性能。
    4. 應保證最差情況“6包1”通道配置的通道性能 (包括Alien NEXT 性能)。
    5. 6類/E級界限1至250MHz的通道插入損失餘量應保證為5%，外推6類/E級界限1至500MHz的通道插入損失餘量應保證為2%。
    6. 6類/E級界限1至250MHz的通道NEXT餘量應保證為6 dB，外推6類/E級界限1至500MHz的通道NEXT餘量應保證為1 dB。
    7. 6類/E級界限1至250MHz的通道PSNEXT餘量應保證為7.5 dB，外推6類/E級界限1至500MHz的通道PSNEXT餘量應保證為2.5 dB 。
    8. 外推6類/E級界限1至500MHz的通道ELFEXT 餘量應保證為6 dB。
    9. 外推6類/E級界限1至500MHz的通道PSELFEXT餘量應保證為8 dB。
    10. 外推6類/E級界限1至250MHz的通道回傳損失應保證為3dB，通道回傳損失應滿足外推6類/E級界限1至500MHz。
    11. 生產商應提供設計及安裝指南，保證滿足最小保證性能餘量。

    　

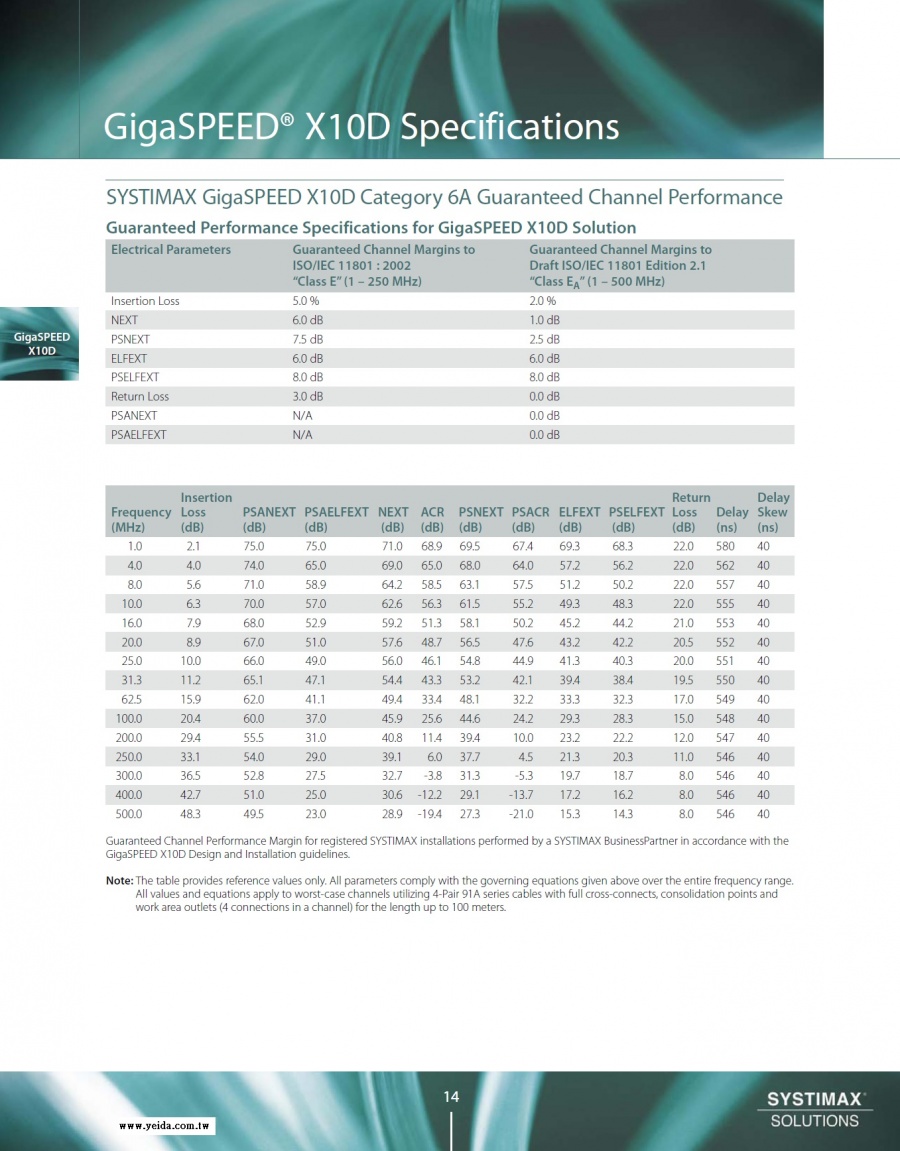

    電氣參數 符合ISO/IEC 11801 : 2002 “Class E” (1-250 MHz)的保證 通道餘量 符合草擬ISO/IEC 11801 Edition 2.1“Class EA” (1-500 MHz)的保證通道餘量
    插入損失 5% 2%
    NEXT 6 dB 1 dB
    NEXT PSNEXT 7.5 dB 2.5 dB
    ELFEXT 6 dB 6 dB
    PSELFEXT 8 dB 8 dB
    RETURN LOSS 3 dB 0dB
    PSANEXT N/A 0dB

    Non Plenum 1091, GigaSPEED® X10D Cable

    The GigaSPEED X10D Solution includes a new type of 4-pair
    cable, the 91 series. GigaSPEED X10D Solution is designed to
    give channel performance exceeding Augmented Category
    6 channel specifications, and in addition has substantially
    improved Alien Crosstalk performance.
    　

    The cable design has been dramatically enhanced using
    the SYSTIMAX Labs Cable Twist Accuracy Technology. The
    91 series cables incorporate a round smooth shape that
    speeds the handling and termination process and minimizes variation in
    Alien Crosstalk performance. The cables have been designed to withstand
    an aggressive 6-around-1 channel test that SYSTIMAX Labs believes to be
    the most challenging test configuration representative of real life installations
    including large cable bundles. This is a Powersum computation of the Alien
    Crosstalk noise from 24-pairs of 6 channels surrounding a single 4-pair channel.
    The 91 series cables have been specified out to 550 MHz to support high
    bandwidth applications operating at 10 Gbps.
    　

    Features and Benefits:
    • Electrical performance guaranteed to meet or exceed
    the channel specifications of the proposed TIA
    “Augmented Category 6” and ISO/IEC “Class EA” up to
    500 MHz when used as part of a GigaSPEED X10D
    Channel in registered SYSTIMAX installations
    • 4-pair construction with finned inner jacket surface and
    bisector center member provides the extra margin of
    performance required for high bandwidth applications
    • Can support network line speeds up to at least 10 Gbps
    • Qualifies for the SYSTIMAX 20-Year Extended Product
    Warranty and Applications Assurance when included as
    part of a registered SYSTIMAX GigaSPEED X10D channel

    Physical Specifications:
    Weight: 41.5 lbs/1,000 ft (18.82 kg/304.8 m)
    Nominal Jacket Thickness: 0.057 in (1.45 mm)
    Nominal Outside Diameter: 0.315 in (8 mm)
    Maximum Pulling Tension: 25 lbs (11.34 kg)
    Operating Temperature: -4°F to 140°F (-20°C to 60°C)
    Gauge: 23 AWG
    Electrical Specifications:
    NVP (fastest pair @ 10 MHz): 66%
    Maximum DC Resistance: 7.61 Ohms/100 m
    Maximum DC Resistance Unbalance: 3%
    Maximum Mutual Capacitance at 1 KHz: 6 nF/100 m
    UL and cUL: CMR, CMG
