    Teldor-9928R64xxx Cat. 6A 4x2x23/1 AWG S/FTP FR-PVC-R Cat-6A 4P耐燃PVC鋁箔銅網雙隔離網路線
    看原圖
    Teldor-9928R64xxx

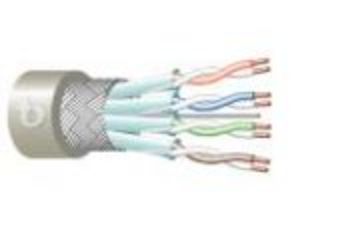

    Teldor-9928R64xxx Cat. 6A 4x2x23/1 AWG S/FTP FR-PVC-R Cat-6A 4P耐燃PVC鋁箔銅網雙隔離網路線
    Part Number:
    9928R64xxx


    Applications: Indoor use, fixed installations, High bandwidth digital applications with low BER, High data rates
    General Construction:
    The cable contains 4 individually aluminum-foil shielded twisted pairs, cabled together with a drain wire, overall braid-shielded and jacketed with FR-PVC CMR grade compound. It exceeds IEC 61156-5, Cat. 6A Cat. 6, and Cat. 5e requirements and tested up to 700 MHz

    Outer Jacket Material: FR-PVC
    Outer Diameter: 8.1 mm nom.
    Weight: 72 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 23 AWG
    Conductor Construction: Solid
    Insulation Material: Cellular PO
    Insulation O.D.: 1.35 mm nom.
    Conductor unit identification: Solid/stripe
    Color code: Per TIA/EIA 568-B
    Ind. Shield Material: Aluminum/Polyester Foil
    Ind. Shield Design: 100% Coverage
    Conductor unit lay-up: Pairs
    Overall Shield Design: Braid
    Overall Shield Material: Tinned-copper braid
    Overall Braid Shield: Yes
    Braid Coverage: 45 % nom.
    Overall Drain-wire Material: Tinned Copper
    Overall Drain-wire size: 0.41 mm
    Overall Drain-wire Construction: Solid
    Total number of wires: 8
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Teldor Standard, Per request
    Standards
    Standards: IEC 61156, ISO/IEC 11801, RoHS 2002/95/EC
    Flamability Rating: IEC 60332-3 , IEEE 515.1 - Type B, UL 1581 VW-1
    Performance
    Electrical Properties:
    Cat. 6A Screened-pair Horizontal Cables*


    Freq.

    MHz

    Attenuation
    dB/100m
    20oC

    PS NEXT Loss
    dB

    NEXT Loss
    dB

    RL
    dB

    PS ANEXT
    dB
    PS ELFEXT
    dB
    ELFEXT
    dB

    Typical Value

    Cat. 6A
    Typical
    Value
    Cat. 6A

    Typical Value

    Cat. 6A

    Typical Value

    Cat. 6A

    Typical Value

    Cat. 6A

    Typical Value

    Cat. 6A

    Typical Value

    Cat. 6A

    1

    2.0

    2.0

    95.0

    72.3

    98.0

    75.3

    22.0

    20.0

    70.0

    67.0

    85.0

    65.0

    88.0

    68.0

    4

    3.7

    3.8

    95.0

    63.3

    98.0

    66.3

    25.0

    23.0

    70.0

    67.0

    73.0

    53.0

    76.0

    56.0

    10

    5.6

    5.9

    95.0

    57.3

    98.0

    60.3

    28.0

    25.0

    70.0

    67.0

    65.0

    45.0

    68.0

    48.0

    20

    7.9

    8.4

    90.0

    52.8

    93.0

    55.8

    28.0

    25.0

    70.0

    67.0

    59.0

    39.0

    62.0

    42.0

    30

    9.7

    10.3

    85.0

    50.1

    88.0

    53.1

    27.0

    23.8

    70.0

    67.0

    55.4

    35.4

    58.4

    38.4

    100

    18.0

    19.1

    80.0

    42.3

    83.0

    45.3

    24.0

    21.1

    67.0

    62.5

    45.0

    25.0

    48.0

    28.0

    150

    22.4

    23.6

    78.0

    39.7

    81.0

    42.7

    22.0

    18.8

    66.0

    59.8

    41.5

    21.5

    44.5

    24.5

    200

    26.0

    27.6

    78.0

    37.8

    81.0

    40.8

    21.0

    18.0

    65.0

    58.0

    49.0

    19.0

    52.0

    22.0

    250

    29.4

    31.0

    75.0

    36.3

    78.0

    39.3

    20.0

    17.3

    63.0

    56.5

    37.0

    17.0

    40.0

    20.0

    300

    32.5

    34.3

    75.0

    35.1

    78.0

    38.1

    19.0

    17.3

    62.0

    55.3

    35.5

    15.5

    38.5

    18.5

    400

    38.0

    40.0

    70.0

    33.3

    73.0

    36.3

    19.0

    17.3

    61.0

    53.4

    33.0

    13.0

    36.0

    16.0

    500

    43.0

    45.2

    70.0

    31.8

    73.0

    34.8

    19.0

    17.3

    59.0

    52.0

    31.0

    11.0

    34.0

    14.0

    600

    47.6

    N/A

    70.0

    N/A

    73.0

    N/A

    19.0

    N/A

    57.0

    N/A

    30.0

    N/A

    33.0

    N/A

    700

    52.0

    N/A

    70.0

    N/A

    73.0

    N/A

    19.0

    N/A

    55.0

    N/A

    29.0

    N/A

    32.0

    N/A























    *Supplied cables meet the minimum Cat. 6A transmission requirements as per IEC 61156-5 Ed. 2
    Frequency Range: 1 - 500 MHz
    Impedance: 100 Ω
    Coupling Attenuation: Type I
    Max. DC Resistance : 73 Ω/km@20°C
    Max. Resistance Unbalance: 2 %
    Capacitance Unbalance: 1.2 pF/m max.
    Velocity of Propagation: 78 % nom.
    Propagation Delay Skew: 25 ns/100m max.
    Dielectric Strength: 700 V/minute
    Dielectric Strength to Shield: 700 V/minute
    Min. Insulation Resistance : 5 GΩ•km
    Max. Tensile Strength - Short Term: 130 N
    Min. Bend Radius: 55 mm
    Max. Operating Temperature: +65 °C
    Min. Operating Temperature: -35 °C
