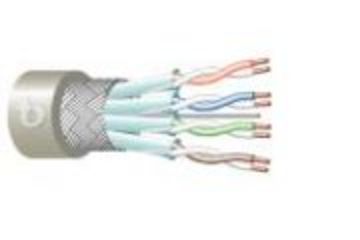

    Teldor-9928451101 Cat. 7 4x(2x23/7 AWG) S/FTP FR-PVC harsh environmental Work area CAT-7 耐燃PVC隔離網路線
    看原圖
    		Teldor-9928451101

    Teldor-9928451101 Cat. 7 4x(2x23/7 AWG) S/FTP FR-PVC harsh environmental Work area CAT-7  耐燃PVC隔離網路線

    Cat. 7 4x(2x23/7 AWG) S/FTP FR-PVC harsh environmental Work area

    Part Number:
    9928451101
    　
    Applications: Indoor/Outdoor use, fixed installations, High data rates
    General Construction:
    4 individually foil-shielded twisted pairs (aluminum face upward), cabled together, overall braid-shielded and jacketed with black UV resistant High grade FR-PVC compound.
    The cable conforms to relevant IEC 61156-5 Cat. 7, Cat. 6A Cat. 6
    and Cat. 5e requirements.
    The cable design and structure makes it suitable for harsh and military environmental installations.
    Outer Jacket Material: FR-PVC
    Outer Diameter: 10.3 mm nom.
    Weight: 105 kg/km
    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 23/7 AWG
    Conductor Construction: Stranded
    Insulation Material: HDPE
    Insulation O.D.: 1.76 mm nom.
    Conductor unit identification: Solid/stripe
    Color code: Per TIA/EIA 568-B
    Ind. Shield Material: Aluminum/Polyester Foil
    Ind. Shield Design: 100% Coverage
    Conductor unit lay-up: Pairs
    Drain-wire 1 Construction: Solid
    Overall Braid Shield: Yes
    Braid Coverage: 60 % nom.
    Overall Drain-wire Material: Tinned Copper
    Total number of wires: 8
    Outer Jacket Color: Black - or per request
    Marking: Teldor Standard, Per request
    Standards
    Standards: IEC 61156, ISO/IEC 11801, RoHS 2002/95/EC
    Flamability Rating: IEC 60332-3 , UL 1581 VW-1
    Performance
    Electrical Properties:
    Cat. 7 Work Area Cables*
    　

    Freq.

    MHz
    Attenuation
    dB/100m
    20oC

    PS NEXT Loss
    dB
    NEXT Loss
    dB

    RL
    dB
    PS ANEXT
    dB
    PS ELFEXT
    dB
    ELFEXT
    dB
    Typical
    Value

    Cat. 7

    Typical Value

    Cat. 7

    Typical Value

    Cat. 7

    Typical Value

    Cat. 7

    Typical Value

    Cat. 7

    Typical Value

    Cat. 7

    Typical Value

    Cat. 7

    1

    2.9

    3.0

    105.0

    99.4

    108.0

    102.4

    22.0

    20.0

    68.0

    N/A

    95.0

    75.0

    98.0

    78.0

    4

    5.4

    5.6

    98.0

    90.4

    101.0

    93.4

    25.0

    23.0

    68.0

    N/A

    90.0

    75.0

    93.0

    78.0

    10

    8.5

    8.8

    95.0

    84.4

    98.0

    87.4

    28.0

    25.0

    68.0

    N/A

    86.0

    71.0

    89.0

    74.0

    20

    12.1

    12.4

    90.0

    80.0

    93.0

    83.0

    28.0

    25.0

    68.0

    N/A

    80.0

    65.0

    83.0

    68.0

    30

    14.8

    15.3

    85.0

    77.2

    88.0

    80.2

    27.0

    23.8

    68.0

    N/A

    76.0

    61.5

    79.0

    64.5

    100

    27.7

    28.5

    80.0

    69.4

    83.0

    72.4

    24.0

    21.1

    68.0

    N/A

    66.0

    51.0

    69.0

    54.0

    150

    34.3

    35.3

    78.0

    66.7

    81.0

    69.7

    22.0

    18.8

    65.0

    N/A

    63.0

    47.5

    66.0

    50.5

    200

    40.0

    41.2

    78.0

    65.0

    81.0

    68.0

    21.0

    18.0

    65.0

    N/A

    60.0

    45.0

    63.0

    48.0

    250

    45.1

    46.5

    75.0

    63.4

    78.0

    66.4

    20.0

    17.3

    62.0

    N/A

    58.0

    43.0

    61.0

    46.0

    300

    49.7

    51.3

    75.0

    62.2

    78.0

    65.2

    19.0

    17.3

    62.0

    N/A

    52.0

    41.5

    55.0

    44.5

    400

    58.2

    60.0

    70.0

    60.4

    73.0

    63.4

    19.0

    17.3

    62.0

    N/A

    49.0

    38.9

    52.0

    41.9

    500

    65.8

    67.9

    70.0

    58.9

    73.0

    61.9

    19.0

    17.3

    62.0

    N/A

    47.0

    37.0

    50.0

    40.0

    600

    72.9

    75.1

    70.0

    57.7

    73.0

    60.7

    19.0

    17.3

    62.0

    N/A

    45.0

    35.4

    48.0

    38.4

    *Supplied cables meet the minimum Cat. 7 transmission requirements as per IEC 61156-6 Ed. 2

    　
    Frequency Range: 1 - 1000 MHz
    Impedance: 100 Ω
    Coupling Attenuation: Type I
    Max. DC Resistance : 73 Ω/km@20°C
    Max. Resistance Unbalance: 2 %
    Capacitance Unbalance: 1.6 pF/m max.
    Velocity of Propagation: 68 % nom.
    Propagation Delay Skew: 30 ns/100m max.
    Dielectric Strength: 700 V/minute
    Dielectric Strength to Shield: 700 V/minute
    Min. Insulation Resistance : 5 GΩ•km
    Max. Tensile Strength - Short Term: 100 N
    Min. Bend Radius: 90 mm
    Max. Operating Temperature: +80 °C
    Min. Operating Temperature: -40 °C
