Teldor-9929504xxx Cat. 7 4x(2x23 AWG) S/FTP Outdoor/Indoor PVC/PVC 室內外 鋁箔銅網隔離網路線

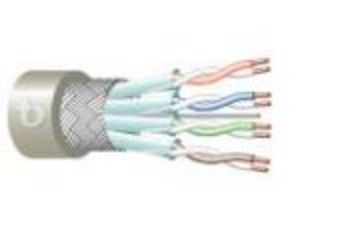

Cat. 7 4x(2x23 AWG) S/FTP Outdoor/Indoor PVC/PVC
Part Number:
9929504xxx
Applications:
Outdoor installations, Low temperature Indoor/Outdoor applications, Indoor/Outdoor use, fixed installations, Low temperature, outdoor fixed installations, High bandwidth digital applications with low BER, High data rates
General Construction:
4 individually shielded twisted pairs, cabled, overall braid shielded and jacketed with two FR-PVC UV resistant compounds. The cable is suitable for outdoor applications in wide operational temperature range.
Outer Jacket Material:
UV resistant FR-PVC
Outer Diameter:
11.6 mm nom.
Weight:
145 kg/km
Design & Materials
Conductor Material:
Bare Copper
Conductor Size:
23 AWG
Conductor Construction:
Solid
Insulation O.D.:
1.35 mm nom.
Color code:
Per TIA/EIA 568-B
Ind. Shield Material:
Aluminum/Polyester Foil
Ind. Shield Design:
100% Coverage
Conductor unit lay-up:
Pairs
Drain-wire 2 Construction:
Solid
Drain-wire 3 Construction:
Solid
Overall Shield Material:
Tinned-copper braid
Overall Braid Shield:
Yes
Braid Coverage:
40 % nom.
Overall Drain-wire Material:
Tinned Copper
Overall Drain-wire size:
0.41 mm
Overall Drain-wire Construction:
Solid
Inner Jacket Material:
FR-PVC
Inner Jacket Diameter:
7.8 mm nom
Inner Jacket Color:
Per request
2nd Inner Jacket Color:
Per request
Total number of wires:
8
Outer Jacket Color:
See TELDOR Jacket Code
Marking:
Teldor Standard, Per request
Standards
Standards:
IEC 61156, RoHS 2002/95/EC
Flamability Rating:
IEC 60332-1, IEC 60332-3 , UL 1581 VW-1, UL CMX
Performance
Electrical Properties:
Cat. 7 Horizontal Cables*
Freq.
MHz
Attenuation
dB/100m
20o C
PS NEXT Loss
dB
NEXT Loss
dB
RL
dB
PS ANEXT
dB
PS ELFEXT
dB
ELFEXT
dB
Typical Value
Cat. 7
Typical
Value
Cat. 7
Typical Value
Cat. 7
Typical Value
Cat. 7
Typical Value
Cat. 7
Typical Value
Cat. 7
Typical Value
Cat. 7
1
2.0
2.0
105.0
99.4
108.0
102.4
22.0
20.0
68.0
N/A
95.0
75.0
98.0
78.0
4
3.6
3.7
98.0
90.4
101.0
93.4
25.0
23.0
68.0
N/A
90.0
75.0
93.0
78.0
10
5.6
5.8
95.0
84.4
98.0
87.4
28.0
25.0
68.0
N/A
86.0
71.0
89.0
74.0
20
7.9
8.3
90.0
80.0
93.0
83.0
28.0
25.0
68.0
N/A
80.0
65.0
83.0
68.0
30
9.7
10.2
85.0
77.2
88.0
80.2
27.0
23.8
68.0
N/A
76.0
61.5
79.0
64.5
100
18.0
19.0
80.0
69.4
83.0
72.4
24.0
21.1
68.0
N/A
66.0
51.0
69.0
54.0
150
22.4
23.6
78.0
66.7
81.0
69.7
22.0
18.8
65.0
N/A
63.0
47.5
66.0
50.5
200
26.0
27.5
78.0
65.0
81.0
68.0
21.0
18.0
65.0
N/A
60.0
45.0
63.0
48.0
250
29.4
31.0
75.0
63.4
78.0
66.4
20.0
17.3
62.0
N/A
58.0
43.0
61.0
46.0
300
32.5
<td style="text-align: center; font-family: Verdana; letter-spacing: 0pt; font-size: 8pt; vertical-align: top; word-spacing: 0pt;" 333333"="">★★★★商品規格描述★★★★
