    Teldor-336072Hxxx 2C x0.75 mm2 HFFR Flexible Speaker Cable2C低煙無毒喇叭線
    看原圖
    		TELDOR-336072HXXX

    商品編號: Teldor-336072Hxxx

    Teldor-336072Hxxx 2C x0.75 mm2 HFFR Flexible Speaker Cable2C低煙無毒喇叭線

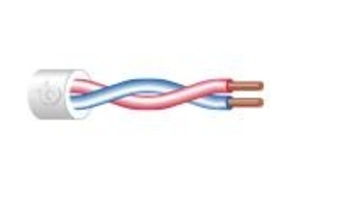

    2x0.75 mm2 HFFR Flexible Speaker Cable

    Part Number:
    336072Hxxx
    　
    Applications: Portable electrical equipment, Loudspeakers
    General Construction: 2 HFFRC insulated 0.75 mm2 flexible cores, cabled together and jacketed with a  flexible HFFR.
    Conductor Cross Section: 0.75 mm²
    Outer Jacket Material: HFFR
    Outer Diameter: 7.2 mm nom.
    Weight: 76 kg/km

    Design & Materials
    Conductor Material: Bare Copper
    Conductor Construction: 24x0.20 mm
    Insulation Material: HFFR
    Insulation O.D.: 2.80 mm nom.
    Conductor Color Code: Red, Blue
    Outer Jacket Thickness: 0.8 mm nom.
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1
    Performance
    Max. DC Resistance : 26.0 Ω/km@20°C
    Dielectric Strength: 2000 V/15 minutes
    Voltage Rating: 400 V
    Max. Operating Temperature: +70C °C
    Min. Operating Temperature: -15C °C
