    Teldor-336402Hxxx 2C x4 mm2 FR-HFFR Flexible Speaker Cable 2C低煙無毒喇叭線
    看原圖
    		TELDOR-336402HXXX

    商品編號: Teldor-336402Hxxx

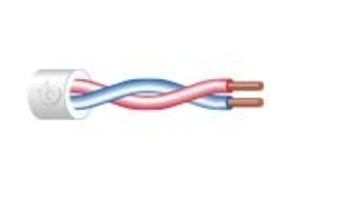

    Teldor-336402Hxxx 2C x4 mm2 FR-HFFR Flexible Speaker Cable 2C低煙無毒喇叭線


    2x4 mm2 FR-LSZH Flexible Speaker Cable

    Part Number:
    336402Hxxx
    　
    Applications: Portable electrical equipment, Loudspeakers
    General Construction: 2  insulated 4 mm2 flexible cores, cabled together and jacketed.
    Conductor Cross Section: 4.0 mm²
    Outer Jacket Material: FR-LSZH
    Outer Diameter: 10.8 mm nom.
    Weight: 200 kg/km
    Total Copper Weight: 72 kg/cable km

    Design & Materials
    Conductor Material: Bare Copper
    Conductor Construction: 77x0.25 mm
    Insulation Material: LSZH
    Insulation Thickness: 0.8 mm
    Insulation O.D.: 4.2 mm nom.
    Outer Jacket Thickness: 1.2 mm nom.
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Per request
    Standards
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Max. DC Resistance : 4.95 Ω/km@20°C
    Dielectric Strength: 2000 V/15 minutes
    Voltage Rating: 400 V
    Max. Operating Temperature: +70C °C
    Min. Operating Temperature: -30C °C
