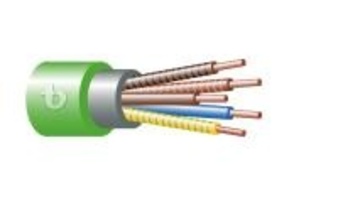

Teldor-7166S05xxx 5C x6166, 16 AWG Unshielded Flexible Cord with PU Jacket 5C喇叭線

TELDOR-7166S05XXX

商品編號: Teldor-7166S05xxx

Teldor 7166S05xxx 5C x6166, 16 AWG Unshielded Flexible Cord with PU Jacket 5C喇叭線

5x6166, 16 AWG Unshielded Flexible Cord with PU Jacket

Part Number:	7166S05xxx Jacket Color and the Teldor P/N

Applications:	Audio-frequency signals, Indoor and outdoor, repeated flexing, Control applications
General Construction:	The cable contains 5 flexible wires, cabled together, with inner PVC jacket and outer flexible PU
Outer Jacket Material:	PU
Outer Diameter:	10.8 mm nom.
Weight:	160 kg/km

Design & Materials

Conductor Material:	Tinned Copper
Conductor Size:	16 AWG
Conductor Construction:	19x0.287 mm
Insulation Material:	FR-PVC -55°C to 105°C rating
Insulation O.D.:	3.0 mm nom.
Conductor Color Code:	Brown, Brown/Black, Brown/Orange, Yellow/Green (2)
Inner Jacket Material:	PVC
Inner Jacket Thickness:	0.5 mm
Inner Jacket Diameter:	9.2 mm
Inner Jacket Color:	Natural
Total number of wires:	5
Outer Diameter:	11.0 mm max.
Outer Jacket Thickness:	0.8 mm nom.
Outer Jacket Color:	See TELDOR Jacket Code
Marking:	Per request

Standards

Standards:	RoHS 2002/95/EC
Flamability Rating:	IEC 60332-1, UL 1581 VW-1

Performance

DC Resistance:	15.8 Ω/km nom.
Velocity of Propagation:	45 % nom.
Dielectric Strength:	2000 V/minute
Dielectric Strength to Shield:	1000 V/minute
Voltage Rating:	3000 V
Max. Operating Temperature:	+90 °C
Min. Operating Temperature:	-40 °C

The following standard insulation colors are available for single conductors

COLOR	Teldor Color Code ("xxx")
Black	101
White	102
Red	103
Blue	104
Yellow	105
Green	106
Orange	107
Purple	108
Grey	109
Light Blue	114
Brown	201
Pink	202

About the Teldor P/N Jacket Color Code

At Teldor, we try and offer our customers the greatest flexibility in product choice. The cable's outer jacket color is no exception. That is why most Teldor P/Ns in this website have a non-color specific or generic suffix: "xxx" (or "C" for FiberOptic cables). Using the color code chart provided below, you can specify the Teldor P/N in your order or RFQ with the desired jacket color! For example, replace the "xxx" with 103 for a red jacket, or the "C" in a FiberOptic P/N with "R".

COLOR	Copper Cable Code ("xxx")	FiberOptic Cable Code ("C")
Black	101	B
White	102	W
Red	103	R
Blue	104	U
Yellow	105	Y
Green	106	E
Orange	107	O
Purple	108	P
Grey	109	G
Light Grey	129	L
Ivory	177	I
Brown	201	N
Pink	202	K
