    Teldor-7SB1802102 2X18 AWG Unshielded XL-ETFE M27500 Cable喇叭線
    看原圖
    		TELDOR-7SB1802102

    商品編號: Teldor-7SB1802102

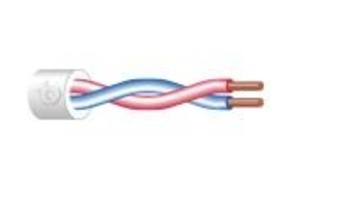

    Teldor-7SB1802102 2X18 AWG Unshielded XL-ETFE M27500 Cable喇叭線


    2X18 AWG Unshielded XL-ETFE M27500 Cable

    Part Number:
    7SB1802102
    　
    Applications: Multiple/Rapid deployment
    General Construction: 2 XL-ETFE insulated twisted wires per MIL-W-22759/32, jacketed with a  XL-ETFE, with excelent abrassion and chemical resistance for Aerocpace and Military use.
    Outer Jacket Material: Cross-linked ETFE
    Outer Diameter: 3.5 mm nom.
    Weight: 24.0 kg/km

    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 18 AWG
    Conductor Construction: 19x0.25 mm
    Insulation Material: XL ETFE -65°C to 150°C
    Insulation O.D.: 1.52 mm nom.
    Conductor Color Code: White, White/Blue
    Total number of wires: 2
    Outer Jacket Thickness: 0.2 mm nom.
    Outer Jacket Color: White
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-3 , IEEE 383
    Performance
    Max. DC Resistance : 20.4 Ω/km@20°C
    Dielectric Strength: 1500 V/minute
    Voltage Rating: 600 V
    Max. Operating Temperature: +150 °C
    Min. Operating Temperature: -100 °C
