    Teldor-9020V20101 20x2X20 AWG Individuall and Overall Braid Shielded Control Cable喇叭控制線

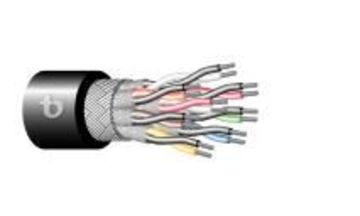

    看原圖
    		TELDOR-9020V20101

    商品編號: Teldor-9020V20101

    Teldor-9020V20101 20x2X20 AWG Individuall and Overall Braid Shielded Control Cable喇叭控制線


    20x2X20 AWG Individuall and Overall Braid Shielded Control Cable

    Part Number:
    9020V20101
    　
    Applications: Audio-frequency signals, Portable, indoor applications, Control applications
    General Construction: 20 PVC  insulated twisted pair, individuall and overall braid shielded and jacketed with a  PVC compound.
    Outer Jacket Material: UV resistant FR-PVC
    Outer Diameter: 22.0 mm nom.
    Weight: 890 kg/km

    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 20 AWG
    Conductor Construction: 19x0.20 mm
    Insulation O.D.: 1.5 mm nom.
    Color code: Standard Electronic Pairs
    Ind. Shield Material: Tinned-copper braid
    Individual Braid Coverage: 90 % nom.
    Overall Shield Material: Tinned-copper braid
    Braid Coverage: 90 % nom.
    Total number of wires: 40
    Total number of conductor units: 20
    Outer Jacket Color: Black
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-3 , IEEE 383
    Performance
    Max. DC Resistance : 32.4 Ω/km@20°C
    Dielectric Strength: 2000 V/minute
    Dielectric Strength to Shield: 1000 V/minute
    Voltage Rating: 600 V
    Max. Operating Temperature: +105 °C
    Min. Operating Temperature: -40 °C
    COLOR CODE for PAIRS

    Pair Color Code Pair Color Code
    1 Black x Red 27 Brown x Orange
    2 Black x White 28 Purple x Black
    3 Black x Green 29 Purple x Red
    4 Black x Blue 30 Purple x White
    5 Black x Yellow 31 Purple x Green
    6 Black x Brown 32 Purple x Blue
    7 Black x Orange 33 Purple x Yellow
    8 Red x White 34 Purple x Brown
    9 Red x Green 35 Purple x Orange
    10 Red x Blue 36 Purple x Grey
    11 Red x Yellow 37 Grey x Black
    12 Red x Brown 38 Grey x Red
    13 Red x Orange 39 Grey x White
    14 Green x White 40 Grey x Green
    15 Green x Blue 41 Grey x Blue
    16 Green x Yellow 42 Grey x Yellow
    17 Green x Brown 43 Grey x Brown
    18 Green x Orange 44 Grey x Orange
    19 White x Blue 45 Pink x Black
    20 White x Yellow 46 Pink x Red
    21 White x Brown 47 Pink x White
    22 White x Orange 48 Pink x Green
    23 Blue x Yellow 49 Pink x Blue
    24 Blue x Brown 50 Pink x Yellow
    25 Blue x Orange 51 Pink x brown
    26 Brown x Yellow 52 Pink x Orange
