    首頁 > > Teldor- MIL-W-22759/32 XL ETFE 600V Lightweight Wall Flexible Conductor -65°C to 150°C 軍規鐵氟龍耐熱電子線

    Teldor-6299101xxx 10 AWG XL ETFE 600V Lightweight Wall Flexible Conductor per MIL-W-22759/32 軍規鐵氟龍耐熱電子線
    看原圖
    		TELDOR-6299101XXX

    商品編號: Teldor 6299101xxx

    Teldor 6299101xxx 10 AWG XL ETFE 600V Lightweight Wall Flexible Conductor per MIL-W-22759/32 軍規鐵氟龍耐熱電子線


    10 AWG ETFE Flexible Conductor

    Part Number:
    6299101xxx
    　
    Applications: Multiple/Rapid deployment
    General Construction: 10 AWG, ETFE (TEFZEL) insulated flexible conductor complies to MIL-W-22579
    Outer Diameter: 3.2 mm nom.
    Weight: 51.2 kg/km
    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 10 AWG

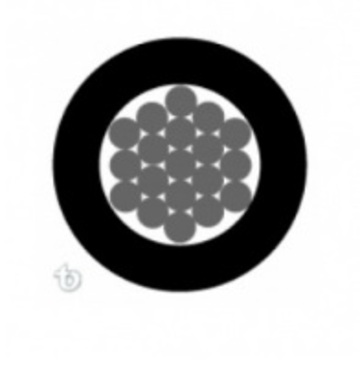

    Conductor Construction: 105x0.25 mm
    Insulation Material: ETFE
    Conductor Color Code: Color Code:
    Outer Jacket Color: See TELDOR Jacket Code
    Standards
    Flamability Rating: IEC 60331-1, UL 1581 VW-1
    Performance
    Max. DC Resistance : 3.4 Ω/km@20°C
    Dielectric Strength: 2500 V/minute
    Voltage Rating: 600 V
    Max. Operating Temperature: +150 °C
    Min. Operating Temperature: -60 °C
