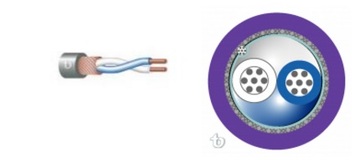

    Teldor 4T000E8101 AUDIO 2x22/7 AWG SF/UTP PU Cable 麥克風線
    看原圖
    		TELDOR-4T000E8101

    商品編號: Teldor-4T000E8101

    Teldor-4T000E8101 AUDIO 2x22/7 AWG SF/UTP PU Cable 麥克風線


    AUDIO 2x22/7 AWG SF/UTP PU Cable

    Part Number:
    4T000E8101
    　
    Applications: Audio-frequency signals, Microphones , Indoor and outdoor, Fixed or portable installation, Control and audio applications, repeated flexing
    General Construction:
    This cable contains two 22/7 AWG PE insulated wires, twisted to form a balancedpair, overall double shielded with polyester-aluminum tape and  TC braid.
    The shielded core is jacketed with an heavy-duty UV resistant anti-fungus resistant PU compound.

    Outer Jacket Material: PU
    Outer Diameter: 7 mm nom.
    Weight: 59 kg/km

    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 22 AWG
    Conductor Construction: 7x0.25 mm
    Insulation Material: PE
    Insulation O.D.: 2.1 mm nom.
    Conductor Color Code: Black x Red
    Overall Shield Design: Aluminum Foil + Braid
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Foil Shield: Yes
    Overall Braid Material: Tinned Copper
    Braid Coverage: 85 % nom.
    Total number of wires: 2
    Outer Jacket Thickness: 1.1 mm nom.
    Outer Jacket Color: Black
    Marking: Teldor Standard, Per request
    Standards
    Standards: RoHS 2002/95/EC
    Performance
    Electrical Properties:
    Characteristic Impedance: 130 ±10 OHM
    　
    Frequency Range: 0-1 MHz
    Impedance: 130 Ω
    Max. DC Resistance : 59 Ω/km@20°C
    Capacitance: 43 pF/m
    Capacitance Unbalance: 1.6 pF/m max.
    Dielectric Strength: 700 V/minute
    Dielectric Strength to Shield: 500 V/minute
    Min. Bend Radius: 45 mm
    Min. Bend Radius for Operation: 45 mm
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -35 °C
    Fungus Resistance: Yes
