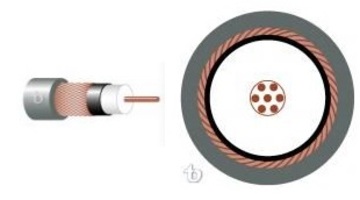

    Teldor-6231221xxx 22 AWG Flexible Coaxial Microphone Cable麥克風線
    看原圖
    		TELDOR-6231221XXX

    商品編號: Teldor-6231221xxx

    Teldor-6231221xxx 22 AWG Flexible Coaxial Microphone Cable麥克風線


    22 AWG Flexible Coaxial Microphone Cable

    Part Number:
    6231221xxx
    　
    Applications: Audio-frequency signals, Microphones , LF (audio) signals, Stage and Theatre, repeated flexing, Indoor
    General Construction: 1 PE insulated 22 AWG flexible wire, double shielded with plastic shield and BC spiral braid. The outer jacket is made of soft "Rubber Like", satin finished PVC .
    Outer Jacket Material: FR-PVC
    Outer Diameter: 6.25 mm nom.
    Weight: 42 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 22 AWG
    Conductor Construction: 32x0.12 mm
    Insulation Material: Cellular LDPE
    Insulation O.D.: 3.0 mm nom.
    Conductor Color Code: natural
    Overall Shield Design: Spiral Braid
    Overall Braid Material: Bare Copper
    Braid Coverage: 99 % nom.
    Total number of wires: 1
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Per request
    Standards
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Electrical Properties:
    Characteristic Impedance:   70 Ohm above 1 MHz

    Max. DC Resistance : 58.0 Ω/km@20°C
    Capacitance: 68 pF/m
    Velocity of Propagation: 78 % nom.
    Dielectric Strength: 1000 V/minute
    Voltage Rating: 300 V
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -20 °C
