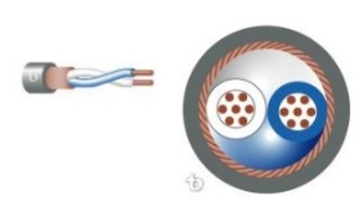

    Teldor 6232241xxx Professional 2C x24 AWG Overall Spiral Braid Shielded Microphone Cable 110 Ohm AES/ABU麥克風線
    看原圖
    		TELDOR-6232241XXX

    商品編號: Teldor 6232241xxx

    Teldor-6232241xxx Professional 2C x24 AWG Overall Spiral Braid Shielded Microphone Cable 110 Ohm AES/ABU麥克風線


    Professional 2x24 AWG Overall Spiral Braid Shielded Microphone Cable 110 Ohm AES/ABU

    Part Number:
    6232241xxx
    　
    Applications: Audio-frequency signals, Microphones , LF (audio) signals, Stage and Theatre, repeated flexing, Indoor
    General Construction:
    Specially designed, extra flexible and durable balanced microphone cable to handle both analog or digital audio applications.
    24 AWG pair is twisted with cotton fillers to give the cable its compact structure to eliminate handling noise and yet to maintain its flexibility.
    An overall served (spiral) braid made of fine copper wires giving a 100% coverage, provides the cable its protective shield from noise caused by electromagnetic interference and simplifies the termination.
    The outer jacket made of a special soft-satin PVC compound for extra-flexing
    Outer Jacket Material: FR-PVC
    Outer Diameter: 6.3 mm nom.
    Weight: 44 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 24 AWG
    Conductor Construction: 40x0.08 mm
    Insulation Material: XLPE
    Insulation O.D.: 1.4 mm nom.
    Conductor Color Code: White x Blue
    Overall Shield Design: Spiral Braid
    Overall Braid Material: Bare Copper
    Braid Coverage: 99 % nom.
    Total number of wires: 2
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Per request
    Standards
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Electrical Properties:
    Characteristic Impedance:   110 Ohm @ 1 MHz

    Max. DC Resistance : 105.0 Ω/km@20°C
    Capacitance: 60 pF/m
    Velocity of Propagation: 65 % nom.
    Dielectric Strength: 500 V/minute
    Voltage Rating: 300 V
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -20 °C
