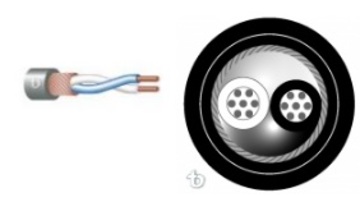

    Teldor 6248802101 2C x24 AWG Double Shielded Microphone Outdoor Cable 室外型麥克風線
    看原圖
    		TELDOR-6248802101

    商品編號: Teldor-6248802101

    Teldor-6248802101 2C x24 AWG Double Shielded Microphone Outdoor Cable 室外型麥克風線


    2x24 AWG Double Shielded Microphone Outdoor Cable

    Part Number:
    6248802101
    　
    Applications: Audio-frequency signals, Microphones , Indoor and outdoor, repeated flexing, Control applications
    General Construction:
    2 PE insulated 24 AWG wires, twisted to form a balanced pair, double shielded with polyester/aluminum foil and tin coated copper braid, jacketed with flexible PU. Additional PU jacket added with excelent abrassion and oil resistance.

    Printing on Cable:
    TELDOR 6248802101 2x24 AWG  OUTDOOR MICROPHONE CABLE FR IEC 60332-1 CE 2002/95/EC (RoHS)
    [Month, Year], [Batch Number], [Sequential Meter Mark] METER
    Outer Jacket Material: PU
    Outer Diameter: 9.5 mm nom.
    Weight: 90 kg/km

    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 24 AWG
    Conductor Construction: 19x0.127 mm
    Insulation Material: Solid LDPE
    Insulation O.D.: 2.25 mm nom.
    Conductor Color Code: Black, Red
    Overall Shield Design: Aluminum Foil + Braid
    Overall Foil Shield: Yes
    Overall Braid Material: Tinned Copper
    Braid Coverage: 80 % nom.
    Inner Jacket Material: PU
    Inner Jacket Thickness: 0.9 mm
    Inner Jacket Diameter: 7.0 mm
    Inner Jacket Color: Black
    Total number of wires: 2
    Outer Jacket Thickness: 1.2 mm nom.
    Outer Jacket Color: Black
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Max. DC Resistance : 86.0 Ω/km@20°C
    Capacitance: 45 pF/m
    Dielectric Strength: 1000 V/minute
    Dielectric Strength to Shield: 500 V/minute
    Min. Insulation Resistance : 100 MΩ•km
    Voltage Rating: 60 V
    Min. Bend Radius: 120 mm
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -40 °C
