    Teldor 9026EX2000 2X26 AWG STP XL-ETFE M27500 Military & Defense
    看原圖
    		TELDOR-9026EX2000

    商品編號: Teldor-9026EX2000

    Teldor-9026EX2000 2X26 AWG STP XL-ETFE M27500 Military & Defense


    2X26 AWG STP XL-ETFE M27500

    Part Number:
    9026EX2000
    　
    Applications: Multiple/Rapid deployment

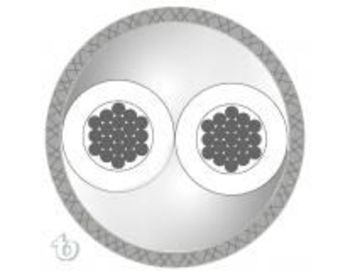

    General Construction: 1 XL-ETFE (MIL-W-22759/32)  insulated twisted pair,  overall tinned copper braid shielded  no jacket.
    　
    Outer Diameter: 2.2 mm nom.
    Weight: 12.0 kg/km

    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 26 AWG
    Conductor Construction: 19x0.10 mm
    Insulation Material: XL ETFE -65°C to 150°C
    Insulation O.D.: 0.81 mm nom.
    Conductor Color Code: White x White
    Overall Braid Shield: Yes
    Overall Braid Material: Tinned Copper
    Braid Coverage: 90 % nom.
    Total number of wires: 2
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-3 , IEEE 383
    Performance
    Max. DC Resistance : 143.0 Ω/km@20°C
    Dielectric Strength: 1500 V/minute
    Voltage Rating: 600 V
    Max. Operating Temperature: +150 °C
    Min. Operating Temperature: -100 °C
