    Teldor-8005002xxx 2Cx6005, 22 AWG Multicore Overall Foil-Shielded Cable電子A/V音響線
    看原圖
    		TELDOR-8005002XXX

    商品編號: Teldor-8005002xxx

    Teldor-8005002xxx 2Cx6005, 22 AWG Multicore Overall Foil-Shielded Cable電子A/V音響線


    2x6005, 22 AWG Multicore Overall Foil-Shielded Cable

    Part Number:
    8005002xxx
    　
    Applications: Audio-frequency signals, Portable, indoor applications, Control applications

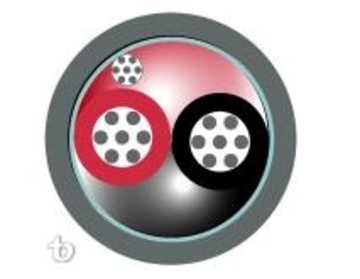

    General Construction: The cable contains 2 single cores, cabled together, overall shielded with a polyester-aluminum foil and jacketed with a soft FR PVC compound
    Outer Jacket Material: FR-PVC
    Outer Diameter: 4.0 mm nom.
    Weight: 23 kg/km
    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 22 AWG
    Conductor Construction: 7x0.25 mm
    Insulation Material: SR-PVC
    Insulation O.D.: 1.35 mm nom.
    Conductor Color Code: Color Code:
    Drain-wire 1 size: 22 AWG
    Drain-wire 2 Material: Tinned Copper
    Drain-wire 2 Construction: Stranded
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Total number of wires: 2
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    DC Resistance: 62.3 Ω/km nom.
    Velocity of Propagation: 45 % nom.
    Dielectric Strength: 1500 V/minute
    Dielectric Strength to Shield: 1000 V/minute
    Voltage Rating: 300 V
    Max. Operating Temperature: +80 °C
    Min. Operating Temperature: -30 °C
